LR68E, LR68C Semtech LLCC68 module



LR68E LoRa, M268E20C BLE6.0-LoRa combo Module

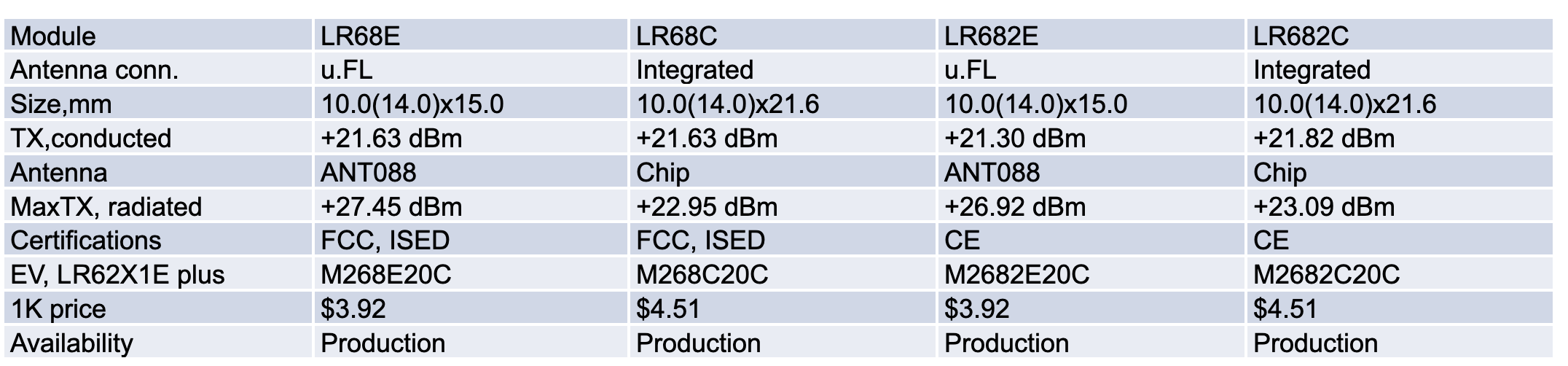

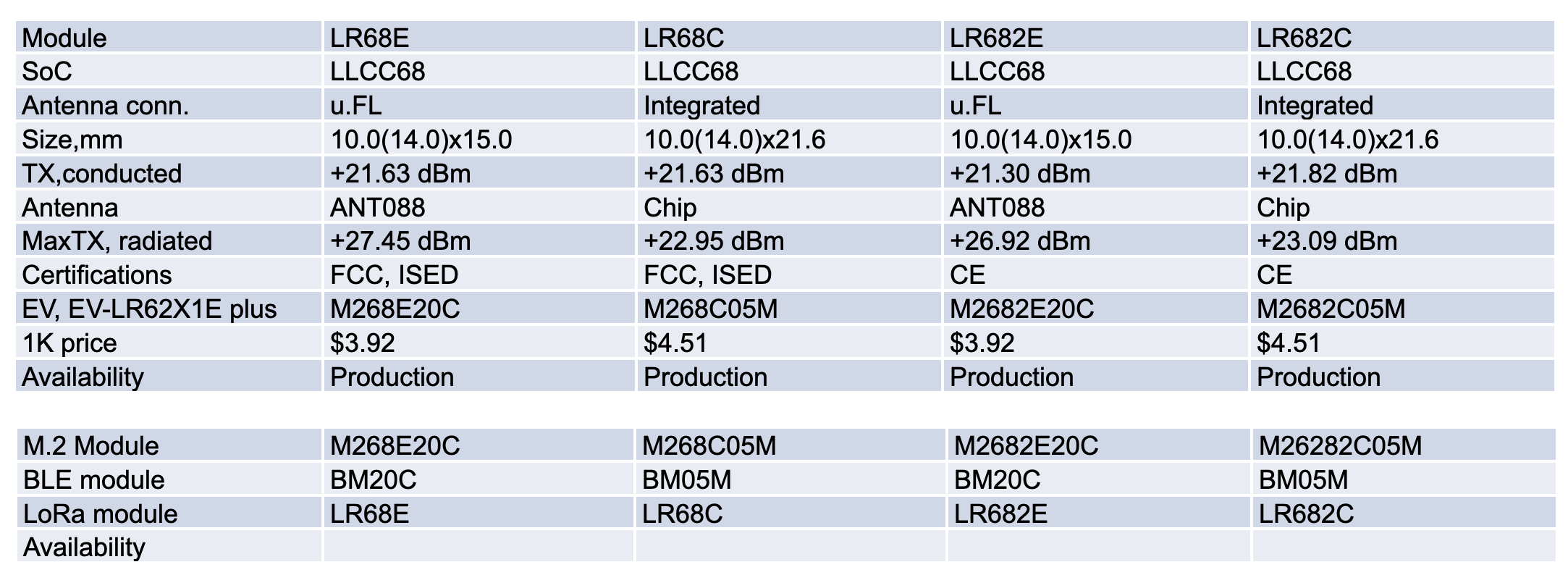

LoRa Module Summaries

LR68E is a low cost Semtech LLCC68 LoRa module, the price is $3.92 each at 1K pcs. It is managed by BM20C or BM05M, a Nordic nRF54LM20A or nRF54L05 Bluetooth 6.0 module through SPI interface, for cloud or smartphone connection. Both FCC and CE versions are available.

M268E20C is an LR68E and BM20C combo module for M.2 connector. M268C05M is a LR68C and BM05M combo.

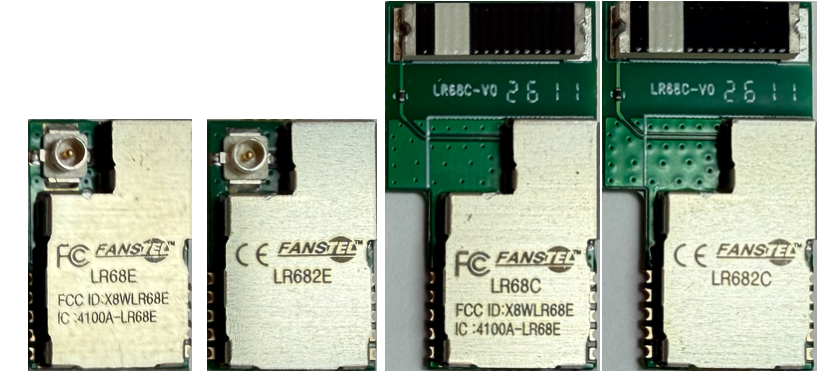

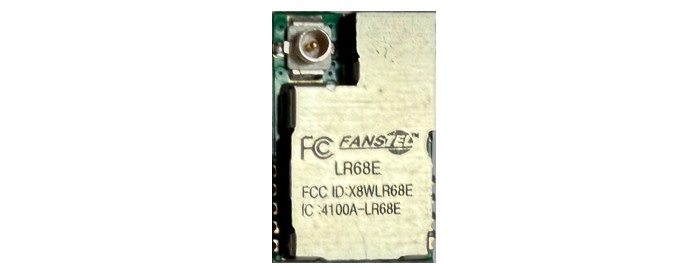

LR68E LoRa Module

  • FCC certified at +21.63 dBm max. conducted TX power;

  • An u.FL connector for external antenna;

  • +22.62 dB radiated TX power with ANT025;

  • +27.45 dBm radiated TX power with ANT088;

  • 902 to 928 MHz;

  • Size: 10.2x15mm

LR68C LoRa Module

  • FCC certified at +22.95 dBm max. radiated TX power;

  • An integrated chip antenna;

  • 902 to 928 MHz;

  • Size: 10.2x21.6mm

LR682E LoRa Module

  • CE compliant at +21.30 dBm max. conducted TX power, +26.92 dBm max. radiated TX power with ANT088;

  • +22.67 dBm max. radiated TX power with ANT025;

  • An u.FL connector for external connector;

  • 869.400 to 869.650 MHz;

  • Size: 10.2x15mm

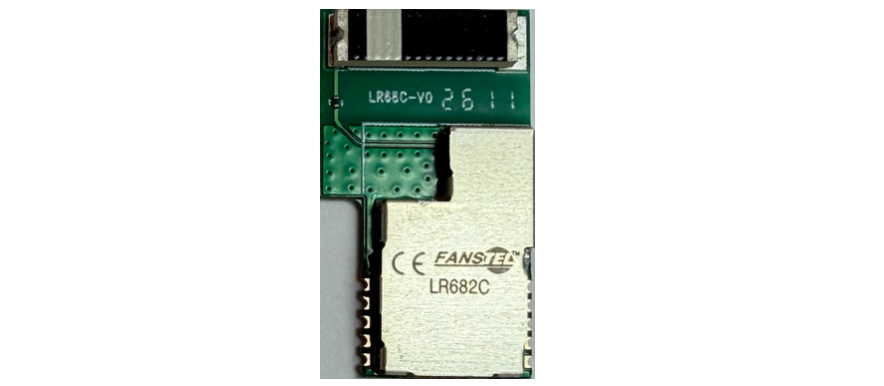

LR682C LoRa Module

  • CE compliant at +23.09 dBm max. radiated TX power;

  • An integrated chip antenna;

  • 869.400 to 869.650 MHz;

  • Size 10.2 x 21.6mm

M268E20C/M2682E20C, LoRa-BLE 6.0 M.2 Module

M268E20C is a LoRa-BLE 6.0, Thread, Zigbee combo module for M.2 connector, B-key. It provides Bluetooth interface to a smartphone for setting up. BM20C is a low cost, long range Nordic nRF54LM20A, BLE 6.0 module.

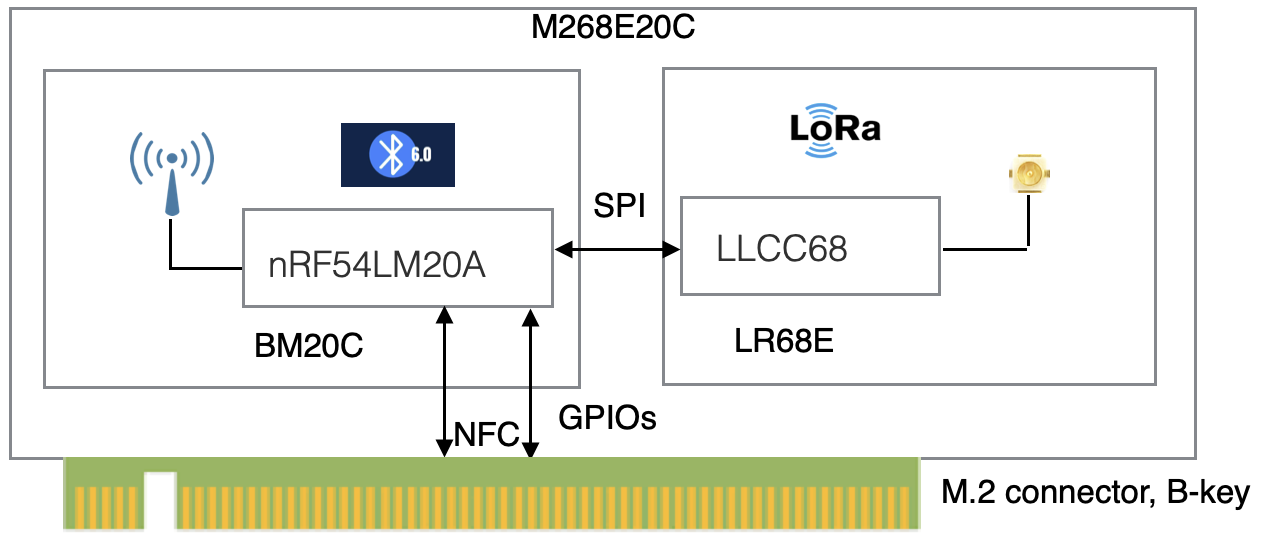

A block diagram:

M268E20C block diagram

  • Nordic nRF54LM20A with Cortex M33 at 128MHz

  • 2MB flash/512KB RAM

  • Bluetooth Range: estimated 2300 meters with at least 60% Fresnel zone clearance.

  • Operation Temperature: -40°C to +85°C

  • Sizes: 30x42 mm

  • BM05M is the lowest cost nRF54L05 BLE 6.0 module with Cortex M33 at 128 MHz, 500KB flash, and 96 KB RAM.

Connecting to Cloud

An application example of LR68E will be provided to allow other LoRa devices connecting to AWS, Google, or Microsoft cloud through WiFi, Ethernet, or LTE network.

Certifications:

  • FCC ID: X8WLR68E

  • ISED ID: 4100A-LR68E

  • CE: Compliant

Datasheets, certificates, evaluation board schematics are available for download.

Evaluation Board EV-LR62X1E

EV-LR62X1E is a Bluetooth to LoRa gateway/bridge without the M.2 module. An USB AC adapter is included. Field test can begin upon completion of firmware development. An M.2 module is available separately.

FCC version, M268E20C (LR68E+BM20C, nRF54LM20A) and M268C05M (LR68C+BM05M, nRF54L05), M.2 modules are available.

CE version, M2682E20C (LR682E+BM20C, nRF54LM20A) and M2682C05M (LR682C+BM05M, nRF54L05), M.2 modules are available.

Order Products

For volume discount and production lead time, please email Fanstel

EV-LR62X1E, LoRa module Evaluation Board kit EV-LR62X1E, LoRa module Evaluation Board kit
EV-LR62X1E, LoRa module Evaluation Board kit
$30.00

EV-LR62X1E is a Bluetooth-LoRa bridge without an M.2 module. It is an evaluation board kit for the Fanstel LoRa module, LR62X1E series, LR68E series, the FCC versions, and LR62X2E series, LR682E series, the CE versions.

An M.2 module with the LoRa module is required, not included.

It includes an AC adapter, ANT000 BLE antenna, and ANT025 LoRa antenna.

It is field test ready upon completion of firmware development.
