BC15C,BC15M,BC15P nRF54L15 Compact Bluetooth 6.0 Thread, Zigbee Modules

Compact Bluetooth 6.0 Module

BC15C is a compact Nordic nRF54L15 BLE 6.0 module with a Cortex M33 MCU at 128 MHz. Size is from 6.0x6.3 mm. Both 32 MHz and 32.768 kHz, -40C to +105C, 20PPM crystals are integrated. DCDC converter Inductors and capacitors for VDD are integrated. No external component is required.

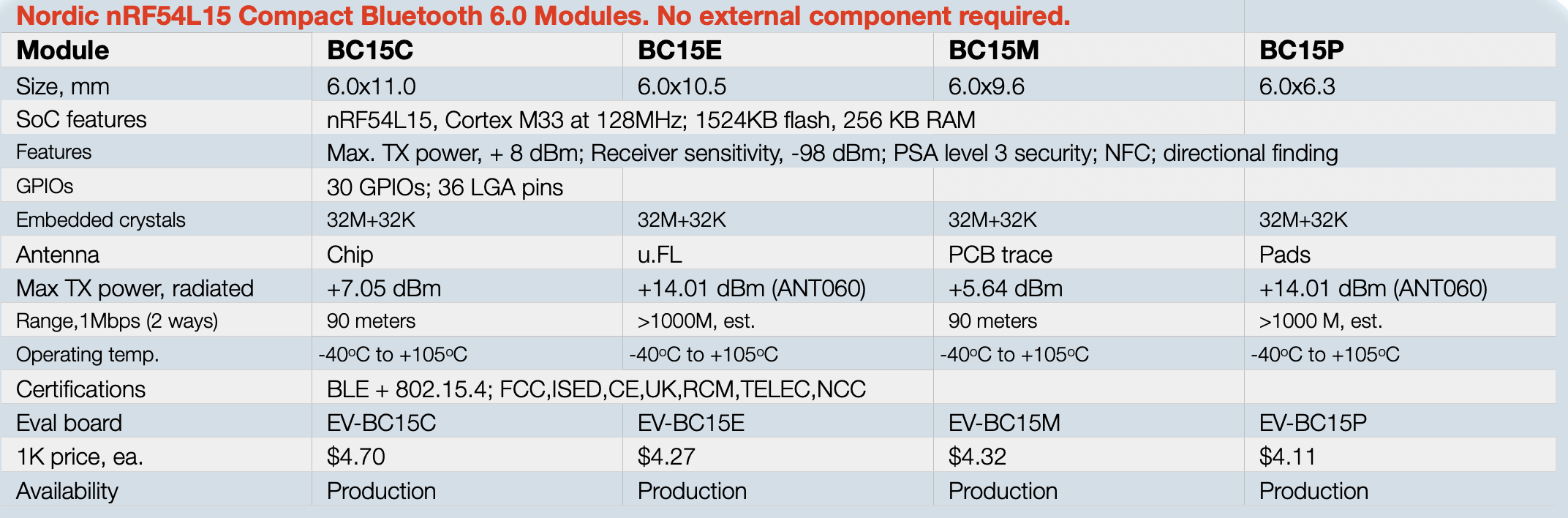

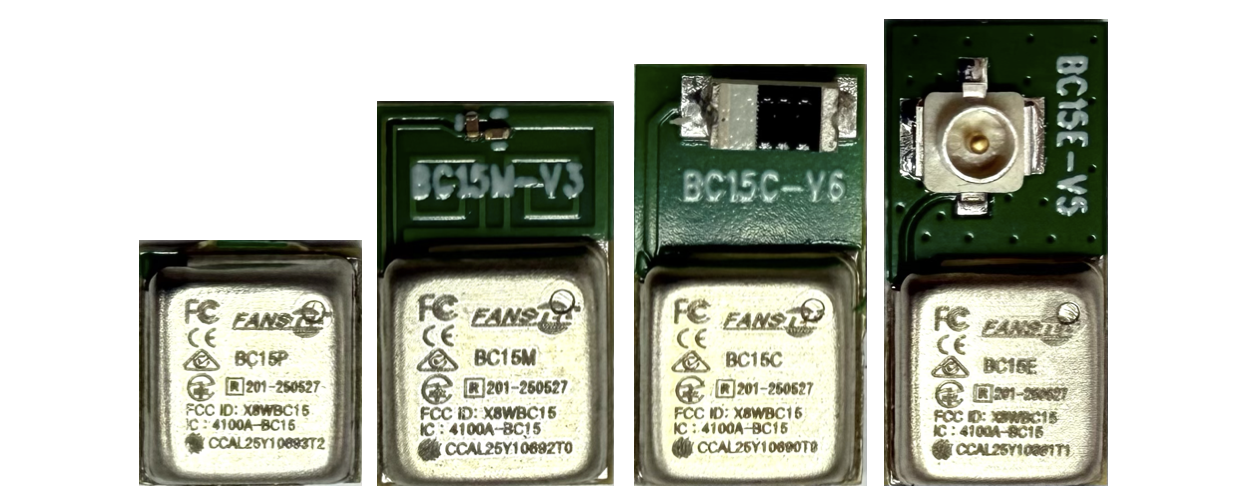

Module Summaries
BC15M

• Size 6.0x9.6x2mm

• PCB antenna.

BC15P

• Size 6.0x6.3x2mm

• pads for connection to external antenna.

BC15C

• Size 6.0x11.0

• x2mm

• an integrated high performance chip antenna.

BC15E

• Size 6.0x10.5x2mm

• u.FL for external antenna.

BC15C Specifications

BLE 6.0, IEEE 802.15.4-2006 Transceiver

• Complete RF solution with integrated antenna

• BLE: 2Mbps, 1Mbps (-96 dBm sensitivity), 500kbps, 125kbps (-106 dBm sensitivity).

• IEEE 802.15.4-2006: 250 kbps (-102 dBm sensitivity).

• Proprietary: 4Mbps, 2Mbps, 1Mbps.

• Programmable TX power, -8 dBm +8 dBm.

• AoA and AoD direction finding using BLE.

• 128 bit AES/ECB/CCM/AAR co-processor (on-the-fly operation).

• 12.0 mW TX current at 0 dBm, 1Mbps, 1.8V VDD.

• 7.5 mW RX current, 1Mbps, 1.8V VDD.

• RSSI, 1 dB resolution

Platform Security

• Secure/non-secure memory protection.

• Symmetric and asymmetric key crypto accelerator.

• Secure key management.

• Tamper detection.

• Immutable boot partition.

• Debug access port protection.

• Two watchdog timers for secure and non-secure context.

MCU

• Nordic nRF54L with ARM Cortex M33, 128 MHz.

• Flash/RAM: 1524KB/256KB.

• 505 EEMAC CoreMark score  running from non-volatile memory, 3.95 CoreMark per MHz.

• Single precision floating point unit (FPU).

• Memory protection unit (MPU).

• Digital signal processing (DSP) instructions.

• Data watchpoint and trace (DWT), embedded trace macrocell (ETM), instrumentation trace macrocell (ITM), and cross trigger interface (CTI).

• Serial Wire Debug (SWD)

• Trace port interface unit (TPIU), 4-bit parallel trace of ITM and ETM trace data; Serial wire output (SWO) trace of ITM data.

Peripherals

• Two realtime counters (RTC), and one global RTC (GRTC) that can run in System OFF mode and implement a shared system timer.

• Seven 32-bit timers with counter mode.

• Five fully featured serial interfaces with EasyDMA, supporting I2C, SPI controller/peripheral, and UART.

• Three pulse width modulator (PWM) units with Easy DMA.

• I2S two channel inter-IC sound interface.

• 14-bit at 20KS/s, 12 bit at 250KS/s, or 10-bit at 2MS/s ADC with up to eight programmable gain channels.

• Near field communication (NFC).

• Two quadrature decoders (QDEC).

• 36 LGA pins, 30 GPIOs.

• Embedded inductors for DCDC converter

• 1.7V to 3.6V supply voltage with up to 3.6V I/O voltage.

• Both 32 MHz and 32 KHz crystal embedded.

• Operation temperature: -40°C to +105°C

Latency Requirements

SDK 3.0 and newer reduce latency to save power consumption, latency shall be set to 1400 for all existing nRF54L15 modules.

Certifications

• FCC ID: X8WBC15 with SAR

• ISED ID: 4100A-BC15

• Europe: Compliant

• Australia and New Zealand: Compliant

• Japan TELEC: 201-250527

• Taiwan NCC ID: BC15C, CCAL25Y10690T7; BC15E, CCAL25Y1T1; BC15M, CCAL25Y10692T0; BC15P, CCAL25Y10693T2.

• QDID:

• Availability: Production
