USB840F, Open Source BLE 5, Thread, Zigbee USB Dongle

USB840F is a low cost, open source, secure Bluetooth 5 USB dongle supporting Bluetooth 5, Thread, or Zigbee radio protocols.

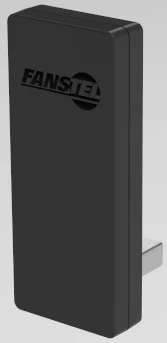

Dongle USB840F



USB840F is in market ready enclosure.  Upon completion of firmware and app development, you can begin marketing products.

A BlueNor BT840F Bluetooth 5, Thread, Zigbee module is the main component inside USB840F.

The 64 MHz Cortex M4F MCU in nRF52 relays messages between a PC and any node in the mesh network. A CryptoCell 310 co-processor is embedded in BT840 Series modules. Secured messages can be decrypted and authenticated when relayed between a PC and Bluetooth SIG mesh.

Bootloader is preloaded in Bluetooth module. SoftDevice and application can be loaded by Over-The-Air firmware update. A TAG connect cable TC2050-IDC-NL-050-ALL can be used to connect to nRF52DK to load bootloader and other codes.

Certifications:

  • FCC: X8WBT840.

  • Industrial Canada: 4100A-BT840.

  • CE: Certified.

  • QDID: 108621

Availability: Now for USB840F without enclosure. Enclosure available in August 2018.

USB840F-PCB, Open Source USB Dongle PCBA for BLE 5, Thread, Zigbee
15.00

USB840F without enclosure.

We will ship between 11/25 and 11/30/2018

Quantity:
Add To Cart
USB840F, Open Source USB Dongle for BLE 5, Thread, Zigbee
17.78

USB840F USB Dongle with enclosure.

FCC, IC, CE Certified

$17.78 each at 1 pcs; $14.82 each at 10 pcs; $13.63 each at 100 pcs; $11.85 each at 1000 pcs.

Add To Cart
