LB51E20BC, nRF9151 LTE/NTN, nRF54LM20B BLE6.0, nRF7002 WiFi 6, LR2021 LoRa Plus Combo Modules

LTE, BLE 6.0 and WiFi 6/LoRa Plus combo for M.2 connector

LB51E20BC Series modules use BM20BC, a Nordic nRF54LM20B BLE 6.0 module with a Cortex M33 MCU at 128 MHz, 2036KB flash, and 512KB RAM as the main MCU. It supports an nRF9151 LTE/NTN module and a WM02C, nRF7002 WiFi 6 module or a Semtech LR2021 LoRa Plus module.

An LBG20BC open source gateway uses this module, is IP67 rated, USBC powered and solar panel ready. It has an optional 18650 rechargeable battery.

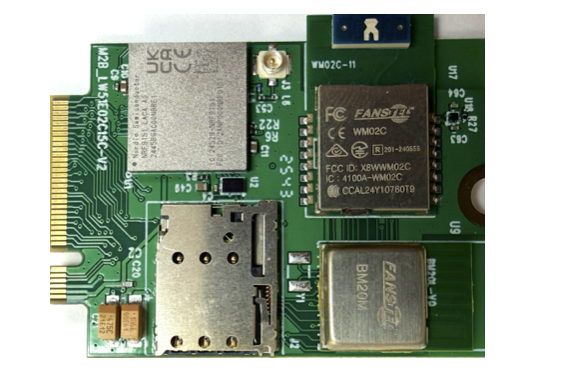

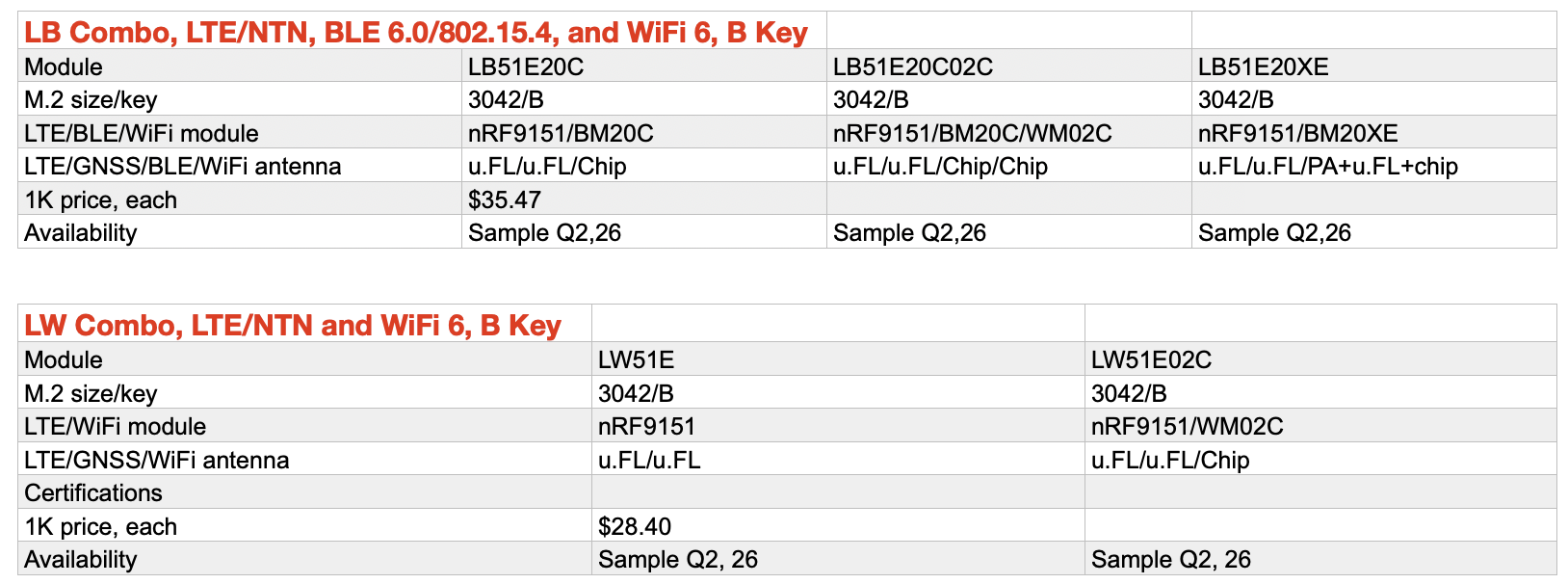

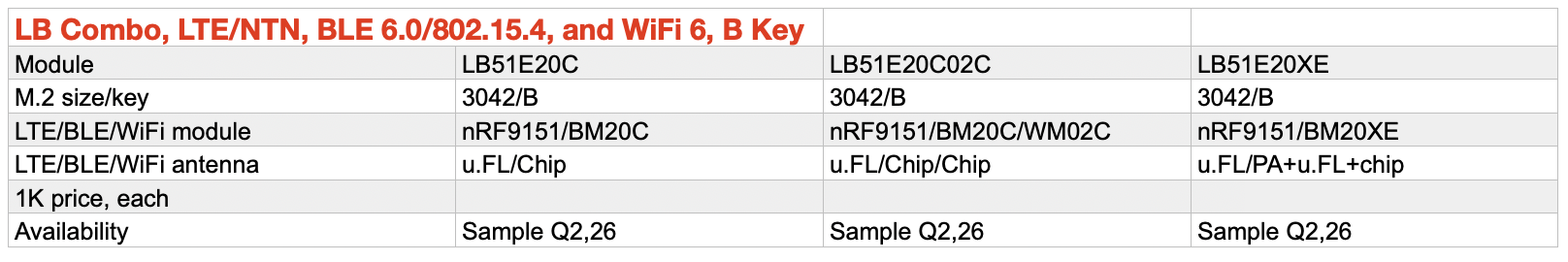

LB51E20BC02C, LTE-NTN, BLE 6.0, WiFi 6 M.2 Combo Module

• BM20BC, an nRF54LM20B BLE 6.0 module with a chip antenna.

• An nRF9151 SIP module supports LTE, NTN, GNSS interface. Two u.FL connectors for external LTE/NTN antenna and GNSS antenna.

• WM02C, an nRF7002 WiFi 6 module with a chip antenna.

• Most BM20BC and some nRF9151 GPIO pins are on the M.2 connector.

LB51E20BXE02E, LTE-NTN, BLE6.0+PA, WiFi 6 M.2 Combo Module

• BM20BXE, nRF54LM20B with Skyworks PA SKY66403. An integrated chip antenna and a u.FL for external antenna.

• An nRF9151 SIP module supports LTE, NTN, GNSS interface. Two u.FL connectors for external LTE/NTN antenna and GNSS antenna.

• WM02E, an nRF7002 WiFi 6 module with a u.FL for external antenna.

• Most BM20BXE and some nRF9151 GPIO pins on M.2 connector

LB51E20BC21EE, LTE-NTN, BLE 6.0 and LoRa Combo Module

• BM20BC, an nRF54LM20B BLE 6.0 module with a chip antenna

• An nRF9151 SIP module supports LTE, NTN, GNSS interface. Two u.FL connectors for external LTE/NTN antenna and GNSS antenna.

• LR21EE (FCC), a Semtech LR2021 LoRa Plus module; a u.FL for 2.4 GHz LoRa; a u.FL for 915 MHz LoRa, FLRC (up to 2.6 Mbps data rate), 802.15.4, OOK, GFSK.

• LR21E2E (CE), a Semtech LR2021 LoRa Plus module; a u.FL for 2.4 GHz LoRa; a u.FL for 868 MHz LoRa, FLRC (up to 2.6 Mbps data rate), 802.15.4, OOK, GFSK.

• Most BM20BC and some nRF9151 GPIO pins are on the M.2 connector.

LB51E20BXE21XE, LTE-NTN, BLE 6.0 and LoRa Combo Module

• BM20BXE, an nRF54LM20B + SKY66403 PA BLE 6.0 module with a chip antenna and a u.FL.

• An nRF9151 SIP module supports LTE, NTN, GNSS interface. Two u.FL connectors for external LTE/NTN antenna and GNSS antenna.

• LR21XE (FCC), a Semtech LR2021 + SKY66122 PA LoRa Plus module; a u.FL for 915 MHz LoRa, FLRC (up to 2.6 Mbps data rate), 802.15.4, OOK, GFSK.

• Most BM20BXE and some nRF9151 GPIO pins are on the M.2 connector.

BM20BC Series Specifications

BLE 6.0, IEEE 802.15.4-2006 Transceiver

• Complete RF solution with integrated antenna

• BLE: 2Mbps, 1Mbps (-96 dBm sensitivity), 500kbps, 125kbps (-106 dBm sensitivity).

• IEEE 802.15.4-2006: 250 kbps (-102 dBm sensitivity).

• Proprietary: 4Mbps, 2Mbps, 1Mbps.

• Programmable TX power, -8 dBm +8 dBm.

• Channel sounding for Bluetooth range measurements.

• 128 bit AES/ECB/CCM/AAR co-processor (on-the-fly operation).

• 12.0 mW TX current at 0 dBm, 1Mbps, 1.8V VDD.

• 7.5 mW RX current, 1Mbps, 1.8V VDD.

• Both 32.0 MHz and 32.768 kHz crystals embedded.

• RSSI, 1 dB resolution

Platform Security

• Secure/non-secure memory protection.

• Symmetric and asymmetric key crypto accelerator.

• Secure key management.

• Tamper detection.

• Immutable boot partition.

• Debug access port protection.

• Two watchdog timers for secure and non-secure context.

MCU

• Nordic nRF54L with ARM Cortex M33, 128 MHz.

• Flash/RAM: 2036KB/512KB.

• 505 EEMAC CoreMark score  running from non-volatile memory, 3.95 CoreMark per MHz.

• Single precision floating point unit (FPU).

• Memory protection unit (MPU).

• Digital signal processing (DSP) instructions.

• Data watchpoint and trace (DWT), embedded trace macrocell (ETM), instrumentation trace macrocell (ITM), and cross trigger interface (CTI).

• Serial Wire Debug (SWD)

• Trace port interface unit (TPIU), 4-bit parallel trace of ITM and ETM trace data; Serial wire output (SWO) trace of ITM data.

Peripherals

• Two realtime counters (RTC), and one global RTC (GRTC) that can run in System OFF mode and implement a shared system timer.

• Seven 32-bit timers with counter mode.

• Five fully featured serial interfaces with EasyDMA, supporting I2C, SPI controller/peripheral, and UART.

• Three pulse width modulator (PWM) units with Easy DMA.

• I2S two channel inter-IC sound interface.

• 14-bit at 20KS/s, 12 bit at 250KS/s, or 10-bit at 2MS/s ADC with up to eight programmable gain channels.

• Near field communication (NFC).

• Two quadrature decoders (QDEC).

• 90 LGA pins, 66 GPIOs.

• Embedded inductors for DCDC converter

• 1.7V to 3.6V supply voltage with up to 3.6V I/O voltage.

• Both 32 MHz and 32 KHz crystal embedded.

• Operation temperature: -40°C to +105°C

Certifications

• FCC ID:

• ISED ID:

• Europe:

• Australia and New Zealand:

• Japan TELEC:

• Availability: Samples
