LM68E15E,LM68E15M nRF54L15 BLE 6.0,802.15.4 and LoRa Modules



LM68E15E coming soon



Ultra Low Cost Bluetooth 6.0-LoRa Combo Module for Amazon Sidewalk

LM68E15E is a Nordic nRF54L15 BLE 6.0 and a Semtech LLCC68 LoRa combo module with a Cortex M33 MCU at 128 MHz. 1524 KB flash/256KB RAM. A 32 MHz, -40C to +105C, 20PPM crystal is integrated. DCDC converter Inductors and capacitors for VDD are integrated.

LM68E15E is footprint upgradeable from BM15M, an nRF54L15 module.

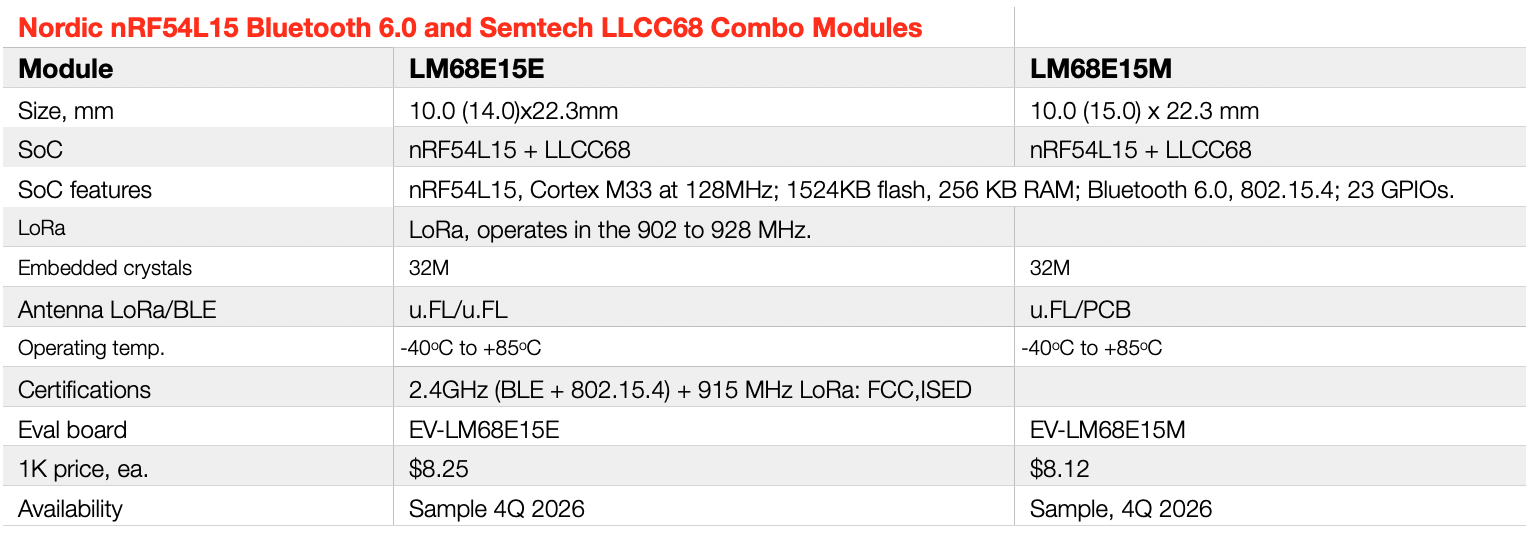

Module Summaries
LM68E15E

  • nRF54L15, 1524KB flash, 256KB RAM.

  • LLCC68 LoRa SoC.

  • Size 10.0 (14.0 antenna area) x 22.3mm

  • a u.FL connector for an external BLE antenna;

  • a u.FL connector for an external LoRa antenna.

LM68E15M

  • nRF54L15, 1524KB flash, 256KB RAM.

  • LLCC68 LoRa SoC.

  • Size 10.0 (15.0 antenna area) x 22.3mm

  • a PCB antenna for BLE;

  • a u.FL connector for an external LoRa antenna.

Bluetooth Specifications

BLE 6.0, IEEE 802.15.4-2006 Transceiver

  • Complete RF solution with integrated antenna

  • BLE: 2Mbps, 1Mbps (-96 dBm sensitivity), 500kbps, 125kbps (-106 dBm sensitivity).

  • IEEE 802.15.4-2006: 250 kbps (-102 dBm sensitivity).

  • Proprietary: 4Mbps, 2Mbps, 1Mbps.

  • Programmable TX power, -8 dBm +7 dBm.

  • Bluetooth 6.0 channel sounding.

  • 128 bit AES/ECB/CCM/AAR co-processor (on-the-fly operation).

  • 12.0 mW TX current at 0 dBm, 1Mbps, 1.8V VDD.

  • 7.5 mW RX current, 1Mbps, 1.8V VDD.

  • RSSI, 1 dB resolution

Platform Security

  • Secure/non-secure memory protection.

  • Symmetric and asymmetric key crypto accelerator.

  • Secure key management.

  • Tamper detection.

  • Immutable boot partition.

  • Debug access port protection.

  • Two watchdog timers for secure and non-secure context.

MCU

  • Nordic nRF54L with ARM Cortex M33, 128 MHz.

  • Flash/RAM: 1524KB/256KB.

  • 505 EEMAC CoreMark score  running from non-volatile memory, 3.95 CoreMark per MHz.

  • Single precision floating point unit (FPU).

  • Memory protection unit (MPU).

  • Digital signal processing (DSP) instructions.

  • Data watchpoint and trace (DWT), embedded trace macrocell (ETM), instrumentation trace macrocell (ITM), and cross trigger interface (CTI).

  • Serial Wire Debug (SWD)

  • Trace port interface unit (TPIU), 4-bit parallel trace of ITM and ETM trace data; Serial wire output (SWO) trace of ITM data.

Peripherals

  • Two realtime counters (RTC), and one global RTC (GRTC) that can run in System OFF mode and implement a shared system timer.

  • Seven 32-bit timers with counter mode.

  • Five fully featured serial interfaces with EasyDMA, supporting I2C, SPI controller/peripheral, and UART.

  • Three pulse width modulator (PWM) units with Easy DMA.

  • I2S two channel inter-IC sound interface.

  • 14-bit at 20KS/s, 12 bit at 250KS/s, or 10-bit at 2MS/s ADC with up to eight programmable gain channels.

  • Near field communication (NFC).

  • Two quadrature decoders (QDEC).

  • 23 GPIOs.

  • Embedded inductors for DCDC converter

  • 1.7V to 3.6V supply voltage with up to 3.6V I/O voltage.

  • An external 32.768 KHz crystal is not required.

  • Operation temperature: -40°C to +105°C

Latency Requirements

SDK 3.0 and newer reduce latency to save power consumption, latency shall be set to 1400 for all existing nRF54L15 modules.

LoRa Specifications

  • Semtech LLCC68 SoC

  • Operates in the 902 to 928 MHz.

Certifications

  • FCC ID:

  • ISED ID:

  • DN: Q382503, Q370633, Q370860

  • Availability:
