LR62X1E, the almost +36dBm FCC and LR62X2E +27 dBm CE LoRa Modules

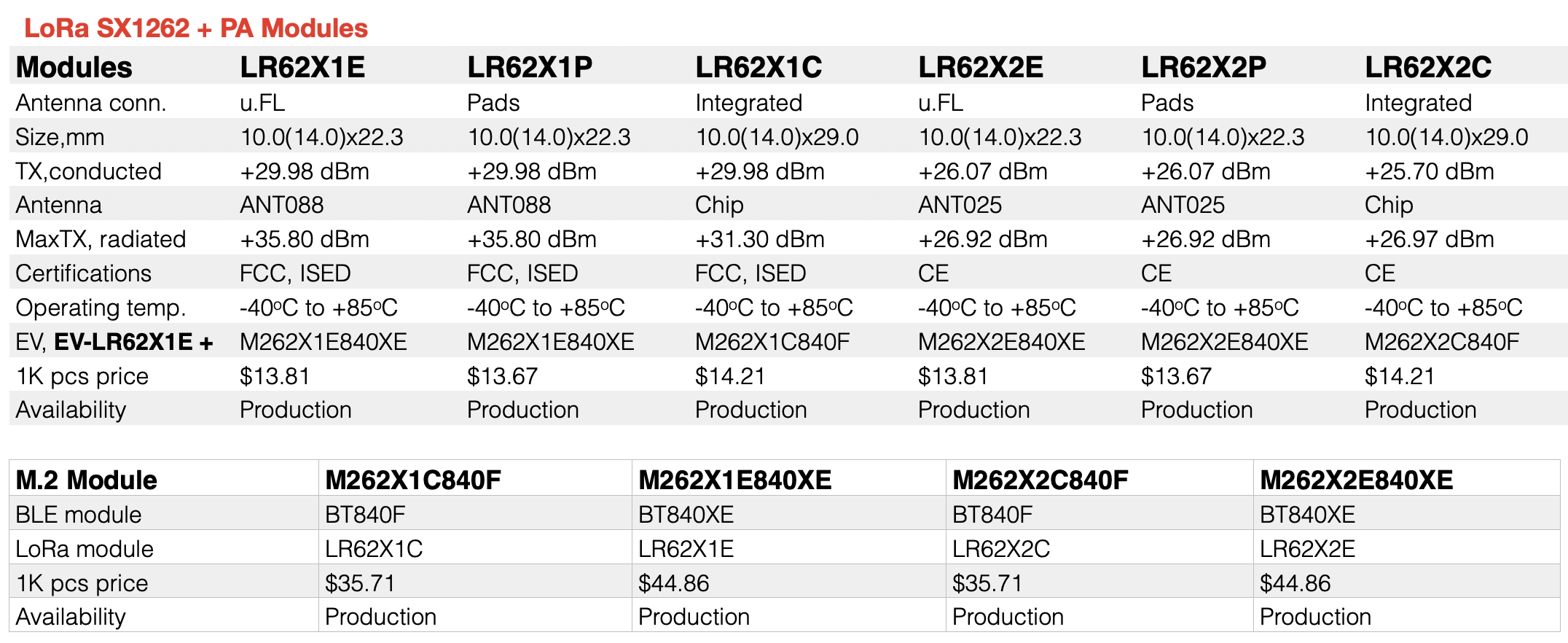

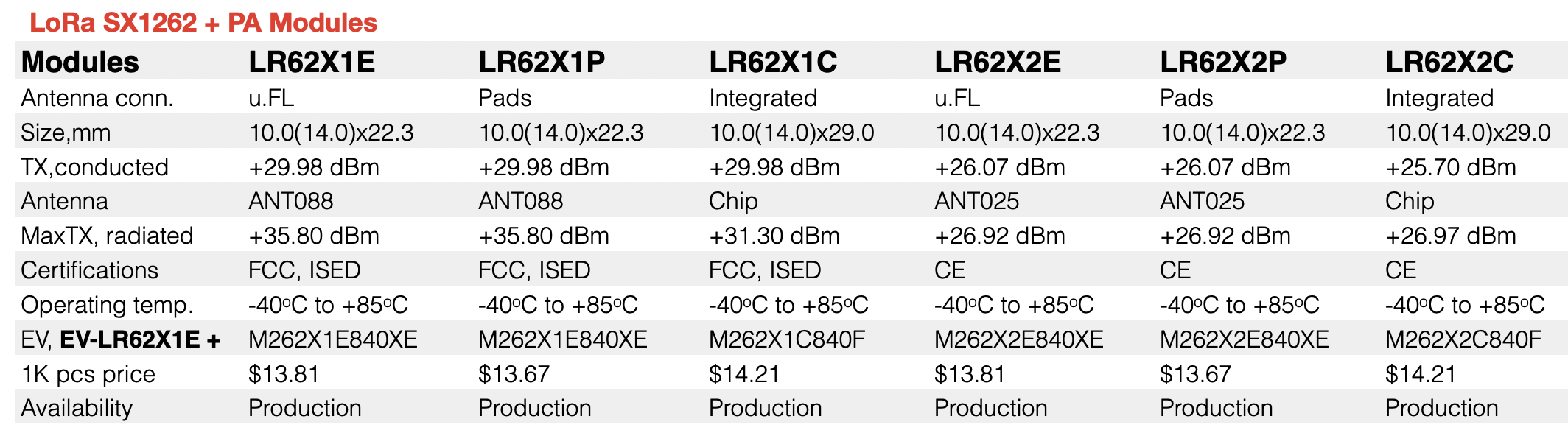

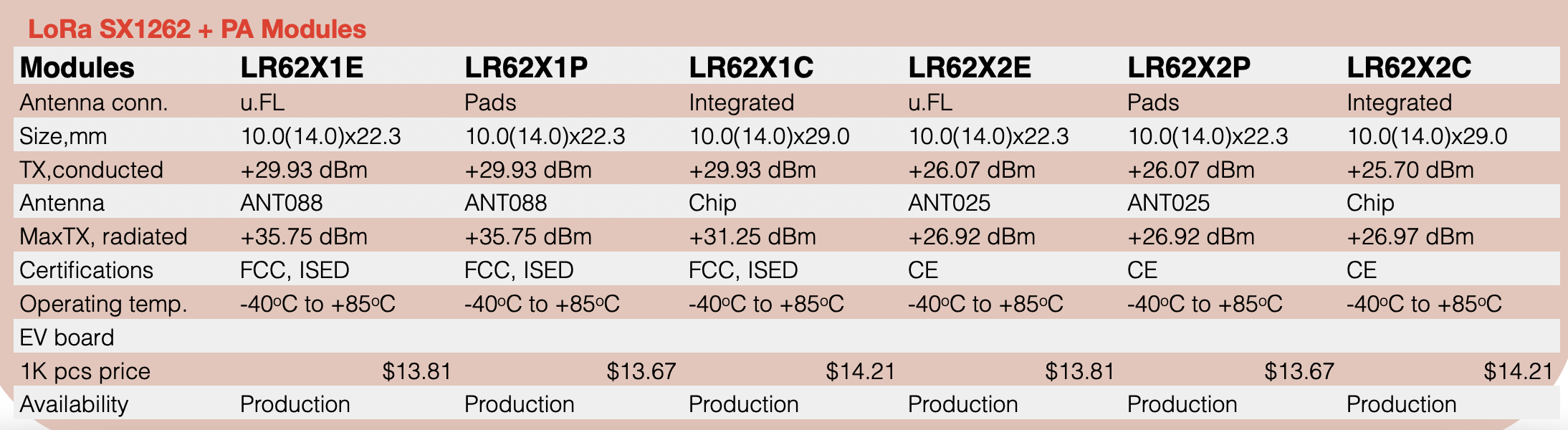

LR62X1E, LR62X1P,LR62X1C,LR62X2E,LR62X2P, LR62X2C
LR62X1E, LR62X1C, LR62X2P are FCC Certified at +29.98 dBm conducted power. The FCC limit is +30.0 dBm. The maximum radiated transmission power is +35.80 dBm when used with ANT088, an antenna with circular polarization.
LR62X1E is developed to replace LR62XE. It is not footprint compatible. A PCB revision is required.
LR62X2C is CE compliant at +26.97 dBm radiated transmission power. When used with antenna ANT025, LR62X2E/LR62X2P is CE compliant for conducted and radiated transmission power at +26.07 dBm and +26.92 dBm, respectively. The CE limit is +27 dBm, radiated.
LR62X1E Series Modules
LR62X1E is a Semtech SX1262 LoRa transceiver module with a Skyworks SE2435 power amplifier. Specifications are:
Max TX power: +29.98 dBM TX power conducted.
With a 5.82 dBi/8.82 dBic antenna, the maximum radiated power is +35.80 dBm.
902 to 928 MHz
Power supply: 4.8V DC, 1 amp.
Operating temperature: -40°C to +85°C
Size: 10.0 (14.0) x22.3mm, L-shape.
You can use any MCU with SPI interface to manage LR62X1E. In Fanstel application example, it is paired with a Nordic nRF52840 module for cloud or smartphone connection. An LR62X1E and BT840F/BT840XE combo module for M.2 connector, M262X1E840F/M262X1E840XE are available.
LR62X2E Series Modules
LR62X2E is a Semtech SX1262 LoRa transceiver module with a Skyworks SE2435 power amplifier. Specifications are:
LR62X2C with an integrated chip antenna, +26.97 dBm TX power radiated.
LR62X2E/LR62X2P conducted TX power, +26.07 dBm; with antenna ANT025, radiated TX power is +26.92 dBm.
Operating frequencies: 869.400 to 869.650 MHz
Power supply: 4.2V DC, 1 amp.
Operating temperature: -40°C to +85°C
Size: 10.0 (14.0) x22.3mm, L-shape.
EV-LR62X1E Evaluation Board
EV-LR62X1E is a Bluetooth to LoRa gateway/bridge without the M.2 module. An USB AC adapter is included. Field test can begin upon completion of firmware development. An M.2 module is available separately.
M2 Modules
Four M.2 modules are offered for evaluation of LR62X1E series modules.
M262X1E840XE, an LR62X1E and BT840XE combo module for evaluation of LR62X1E and LR62X1P.
M262X1C840F, an LR62X1C and BT840F combo module for evaluation of LR62X1C.
M262X2E840XE, an LR62X2E and BT840XE combo module for evaluation of LR62X2E and LR62X2P.
M262X2C840F, an LR62X2C and BT840F combo module for evaluation of LR62X2C.
Size: 30x42mm.
B key
M262X1E840XE block diagram
Certifications:
LR62X1C, LR62X1E, LR62X1P:
FCC ID: X8WLR62X1E
IC (Industrial Canada) ID: 4100A-LR62X1E
LR62X2C, LR62X2E, LR62X2P:
CE: Compliant
Order Products
For volume discount and production lead time, please email Fanstel
LR62X1E, Semtech SX1262 + power amplifier LoRa module with an u.FL connector. +29.98 dBm TX power, conducted. FCC certified with ANT025(0.99 dBi gain), ANT042 (4.2 dBi gain), and ANT088 (5.8 dBi, 8.8 dBic gain). The maximum TX power is +35.80 dBm when used with the ANT088 antenna with circular polarization.
The price is $13.81 each at 1K pcs.
LR62X1C, Semtech SX1262 + power amplifier LoRa module with an integrated chip antenna. FCC certified at +29.98 dBm TX power, conducted; +31.3 dBm radiated.
The price is $14.21 each at 1K pcs.
LR62X1P, Semtech SX1262 + power amplifier LoRa module with pads for external antenna connection, +29.98 dBm TX power, conducted. FCC certified with ANT025(0.99 dBi gain), ANT042 (4.2 dBi gain), and ANT088 (5.8 dBi, 8.8 dBic gain). The maximum TX power is +35.80 dBm when used with the ANT088 antenna with circular polarization.
The price is $13.67 each at 1K pcs.
LR62X2E, Semtech SX1262 + power amplifier LoRa module with an u.FL connector. +26.92 dBm TX power, radiated. CE compliant with ANT025(0.85 dBi gain) and ANT088 (5.6 dBi, 8.6 dBic gain at 870 MHz). The maximum TX power is +26.07 dBm conducted when used with the ANT025 antenna.
The price is $13.81 each at 1K pcs.
LR62X2C, Semtech SX1262 + power amplifier LoRa module with an integrated chip antenna. CE compliant at +26.97 dBm TX power, radiated.
The price is $14.21 each at 1K pcs.
LR62X2P, Semtech SX1262 + power amplifier LoRa module with pads for external antenna connection. +26.07 dBm TX power, conducted. CE compliant with ANT025(0.85 dBi gain) and ANT088 (5.6 dBi, 8.6 dBic gain at 870 MHz). The maximum TX power is +26.92 dBm, radiated, when used with the ANT025 antenna.
The price is $13.67 each at 1K pcs.
