LBG20BC, IP67 Open Source, Battery Backup LTE-BLE-WiFi-LoRa Edge AI Gateway
LBG20BC is an IP67 open source LTE-NTN to Bluetooth 6.0 gateways with an Axon NPU for edge AI applications. WiFi 6 and LoRa interfaces are available. This gateway is AC powered with optional backup battery. It is solar panel ready.
LBG20C IP67 Battery Backup LTE-BLE-WiFi-LoRa Gateway

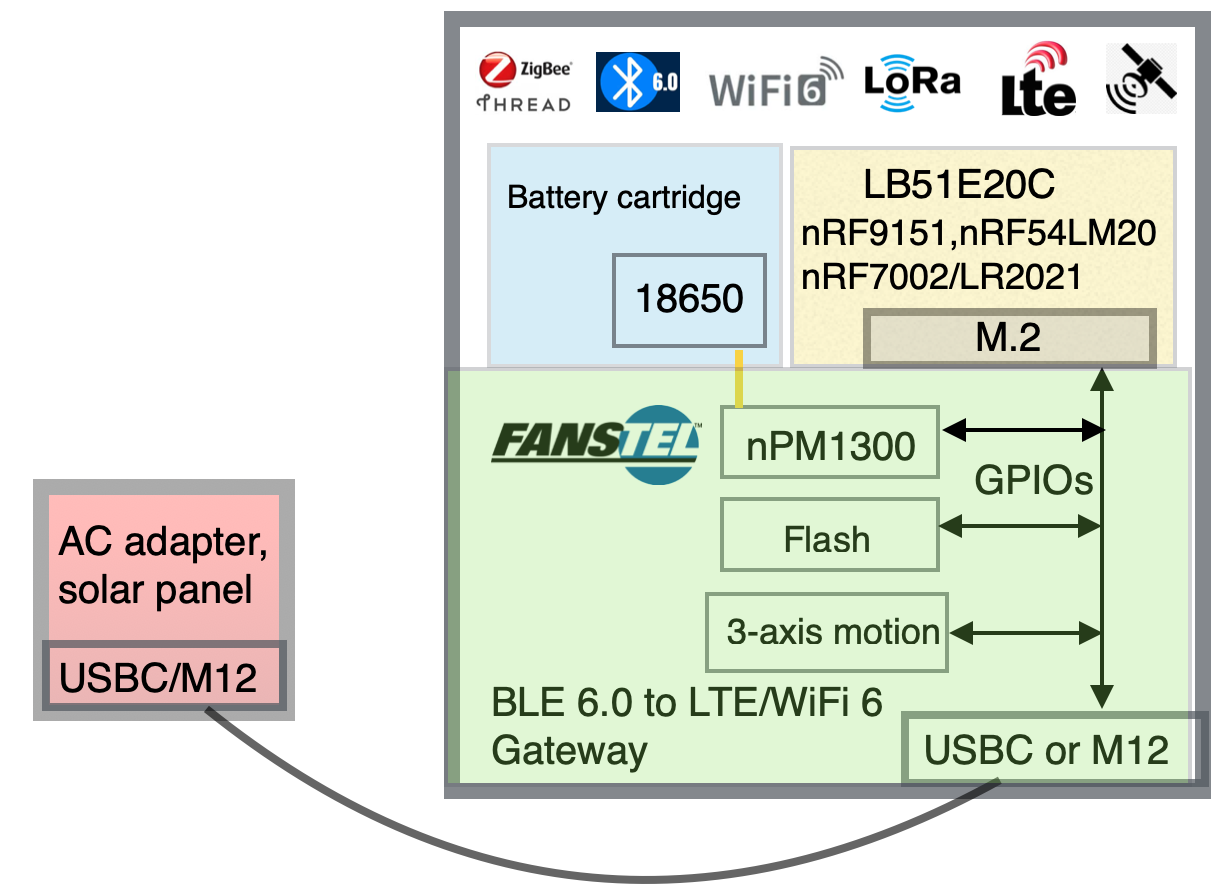

Block Diagrams
An M.2 connector to accommodate a LTE-BLE-WiFi or a LTE-BLE-LoRa combo module.
An USBC connector for power with an optional M12 connector for deployment in rugged environment.
Battery charging circuit with a compartment for an optional 18650 battery.
Flash memories.
a 3-axis motion sensor.
LBG20C Battery Backup Gateway

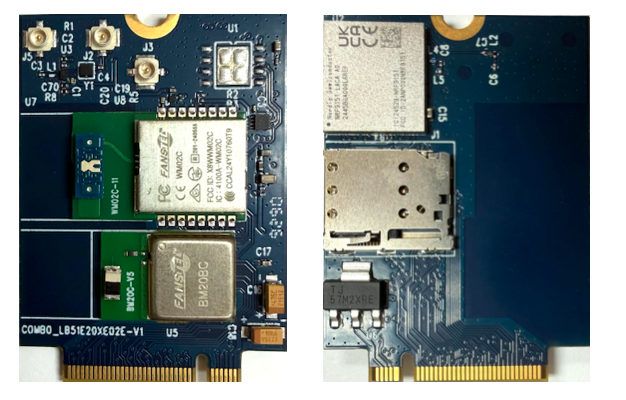

A gateway is created when a compatible M.2 module is inserted. The following is a photo with the top and bottom sides of LB51E02C20BC.
LB51E02C20C, an nRF9151, nRF54LM20B, and nRF7002 combo M.2 module, B Key
Operating temperature of gateway/sensor is from -40C to +85C.

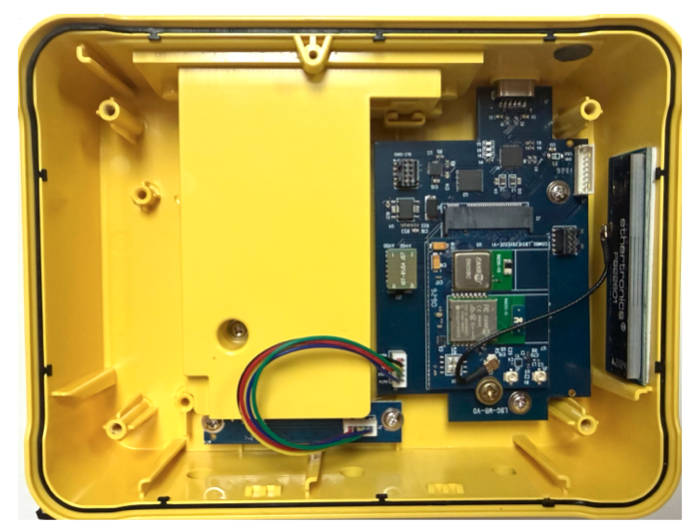

LBG20BC, IP67 BLE-LTE Gateway
An LB51E20BC module
Nordic nRF9151 supporting LTE and NTN satellite.
BM20BC (nRF54LM20B BLE 6.0 module with a chip antenna)
Axon NPU for edge AI applications.
an u.FL connector for external LTE antenna
an u.FL connector for external GNSS antenna.
An USBC connector.

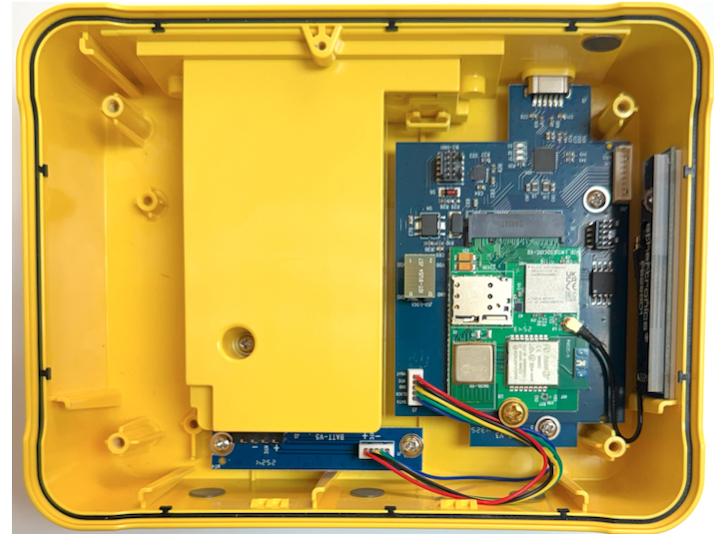

LBG02C20BC, IP67 BLE-WiFi-LTE Gateway or Tracker
An LB51E02C20BC module
Nordic nRF9151 supporting LTE and NTN satellite.
BM20BC, nRF54LM20B BLE 6.0 module with a chip antenna
WM02C, nRF7002 WiFi 6 module. Connect to router, or scan routers for location services.
Axon NPU for edge AI applications.
an u.FL connector for external LTE antenna
an u.FL connector for external GNSS antenna.
An USBC connector.
LBG20BXE, IP67 LTE-BLE Gateway
An LB51E20BXE module
Nordic nRF9151 supporting LTE and NTN satellite.
BM20BXE, an nRF54LM20B BLE 6.0 module with a PA, an u.FL, and a chip antenna.
Axon NPU for edge AI applications.
an u.FL connector for external LTE antenna
an u.FL connector for external GNSS antenna.
An USBC connector.
Certifications:
FCC:
ISED:
CE:
QDID:
