BLG20BF, Open Source BLE 6.0 to LTE/NTN, WiFi 6 Gateways

BLG20BF series of IP51 open source gateways support LTE, satellite, Bluetooth 6.0, WiFi 6 and CAN interfaces.

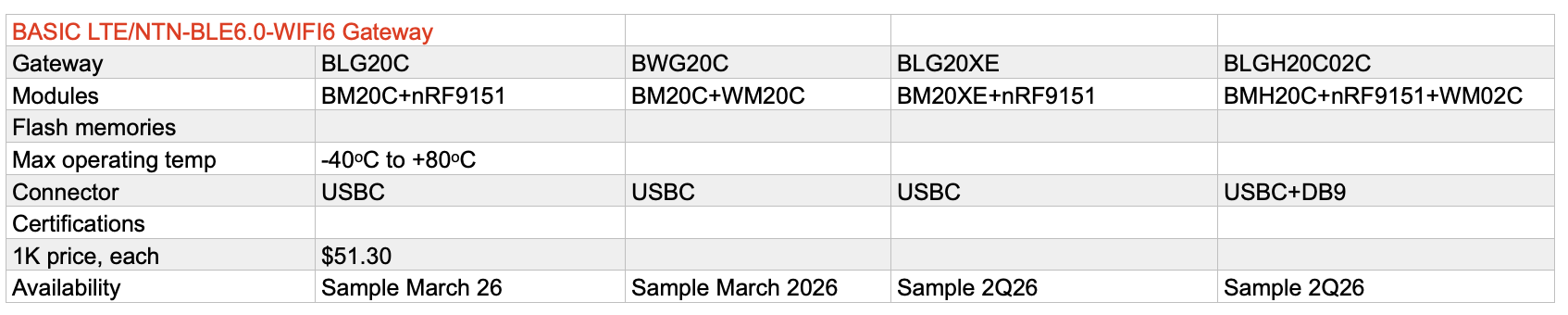

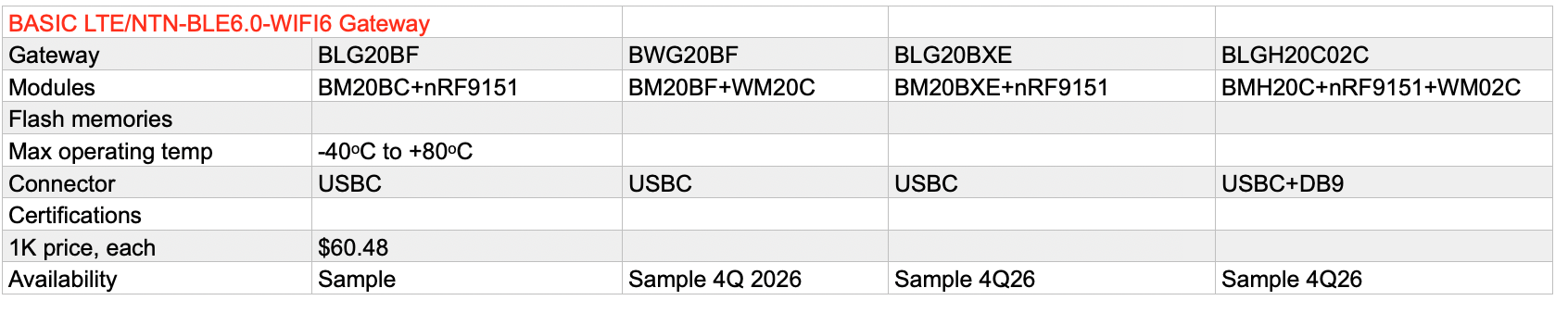

BLG20BF Series BLE 6.0 to LTE, NTN, WiFi 6 Gateways



BLG20BF BLE 6.0 to LTE/NTN, WiFi 6 Gateway

Operating temperature of gateway/sensor is from -40C to +80C.

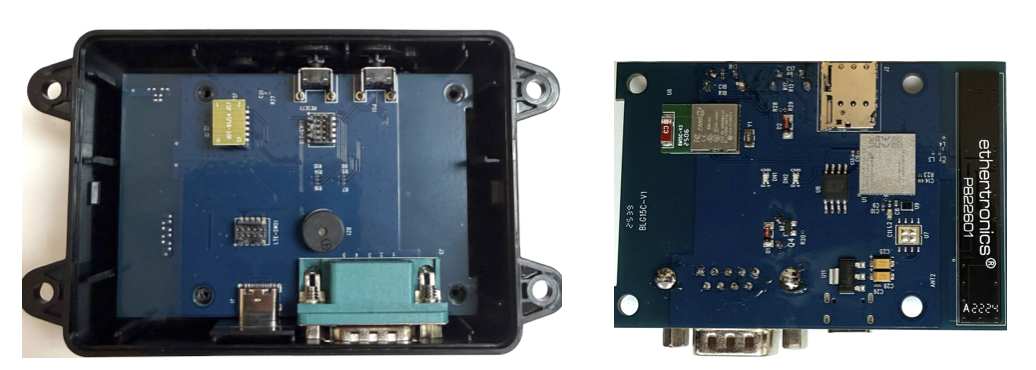

BLG20BC, Basic BLE 6.0 to LTE/NTN Gateways

  • Nordic nRF9151 supporting LTE and NTN satellite.

  • BM20BC (nRF54LM20B BLE 6.0 module with a chip antenna)

  • An USBC connector.

  • The first engineering samples only. To be replaced by BLF20BF with much better Bluetooth range.

BLG20BF, Basic BLE 6.0 to LTE/NTN Gateways

  • Nordic nRF9151 supporting LTE and NTN satellite.

  • BM20BF (nRF54LM20B BLE 6.0 module with a high performance PCB antenna)

  • An USBC connector.

BWG20BF, Basic BLE 6.0 to WiFi 6 Gateways

  • WM02C(nRF7002) WiFi 6 module.

  • BM20BF (nRF54LM20F BLE 6.0 module with a chip antenna)

  • An USBC connector.

BLG20XE, BLE 6.0 with a PA to LTE/NTN Gateway

  • Nordic nRF9151 supporting LTE and NTN satellite.

  • BM20BXE (nRF54LM20B BLE 6.0 module with a PA, an u.FL, and a chip antenna?)

  • An USBC connector.

BLG2H20F02C, BLE 6.0 to LTE/NTN and WiFi 6 Gateway

  • Nordic nRF9151 supporting LTE and NTN satellite.

  • BMH20F (nRF54H20 BLE 6.0)

  • An USBC connector.

  • A DB9 connector for CAN interface

Certifications:

FCC:

ISED:

CE:

QDID:

Order Products

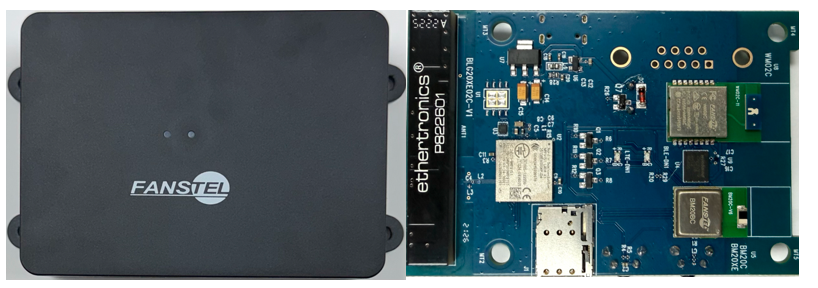

BLG20BC, BLE 6.0 to LTE-M, NTN Gateway BLG20BC, BLE 6.0 to LTE-M, NTN Gateway
BLG20BC, BLE 6.0 to LTE-M, NTN Gateway
$80.00

An IP67, Bluetooth 6.0/802.15.4 to LTE/NTN gateway.

Size is 90×65×28mm, desk or wall mount.

Multiple network interfaces: LTE-M and NTN.

Nordic nRF9151 LTE-M-NTN module, pre-installed internal LTE antenna ANT032I, a u.FL connector for an external GPS antenna.

BM20BC, BLE 6.0 module, integrated chip antenna, Cortex M33 at 128 MHz, 2036 KB flash, 512KB RAM, Axon NPU for edge AI applications.

Includes a USBC AC adapter with a 2-meters long cable.

Need Programming Kit, PK-BLG840F to load codes.

The first engineering samples do not have a silicone plug for the DB9 connector mounting hole. It will be added in the future. Future gateways will use BM20BF with much better Bluetooth range.

Engineering samples, $80.00 each.
