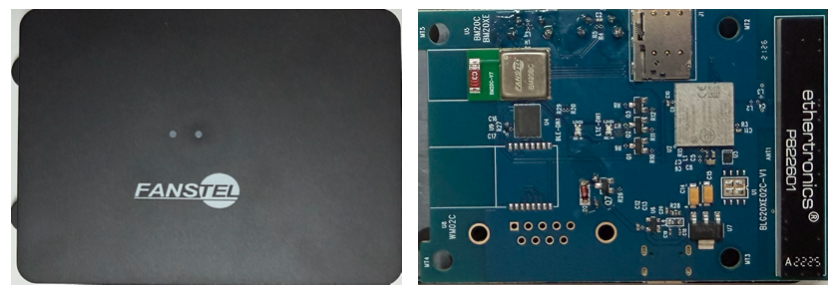

An IP67, Bluetooth 6.0/802.15.4 to LTE/NTN gateway.

Size is 90×65×28mm, desk or wall mount.

Multiple network interfaces: LTE-M and NTN.

Nordic nRF9151 LTE-M-NTN module, pre-installed internal LTE antenna ANT032I, a u.FL connector for an external GPS antenna.

BM20BC, BLE 6.0 module, integrated chip antenna, Cortex M33 at 128 MHz, 2036 KB flash, 512KB RAM, Axon NPU for edge AI applications.

Includes a USBC AC adapter with a 2-meters long cable.

Need Programming Kit, PK-BLG840F to load codes.

The first engineering samples do not have a silicone plug for the DB9 connector mounting hole. It will be added in the future. Future gateways will use BM20BF with much better Bluetooth range.

Engineering samples, $80.00 each.
