nRF54LM20A and nRF54LM20B BLE 6.0 Modules

WM02C20C Series modules use a Nordic nRF7002 WiFi 6 and an nRF54LM20A or nRF54LM20B BLE 6.0 SoC with a Cortex M33 MCU at 128 MHz, 2036 KB flash, 512 KB RAM. Both 32 MHz and 32.768 kHz, -40C to +105C, 20PPM crystals are integrated. No external component is required.

nRF54LM20B has an embedded Axon NPU, an inference engine to process sensor data at the edge. It can reduce power consumption for transmitting data to the cloud and reduce the impact of unreliable cloud connection.

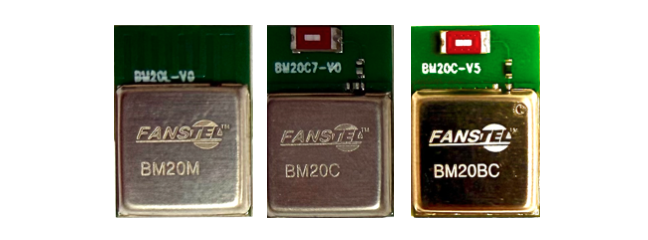

WM02C20C Series is footprint compatible with BM20C series, BM20NE series (with an nRF21540 PA), and BM20XE series (with an SKY66403 PA) modules.

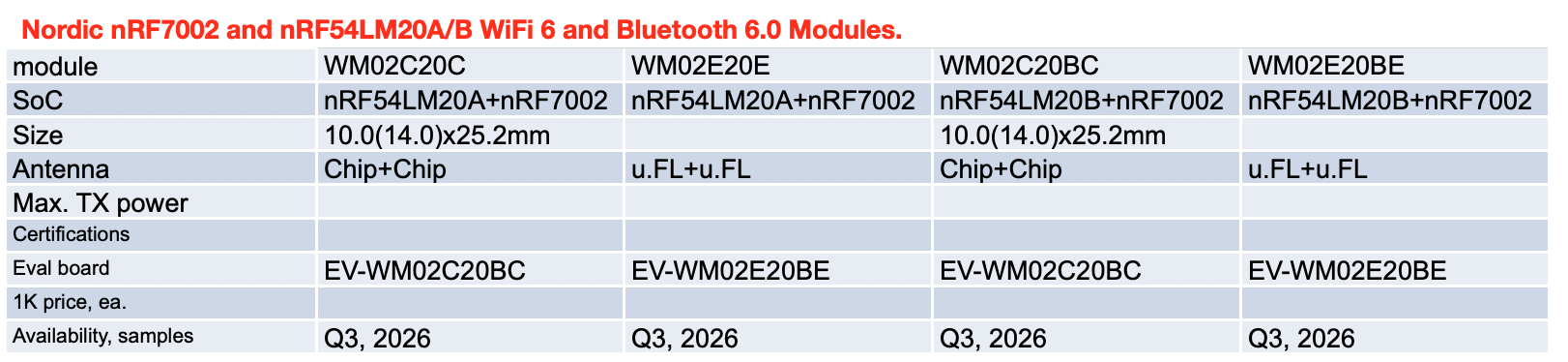

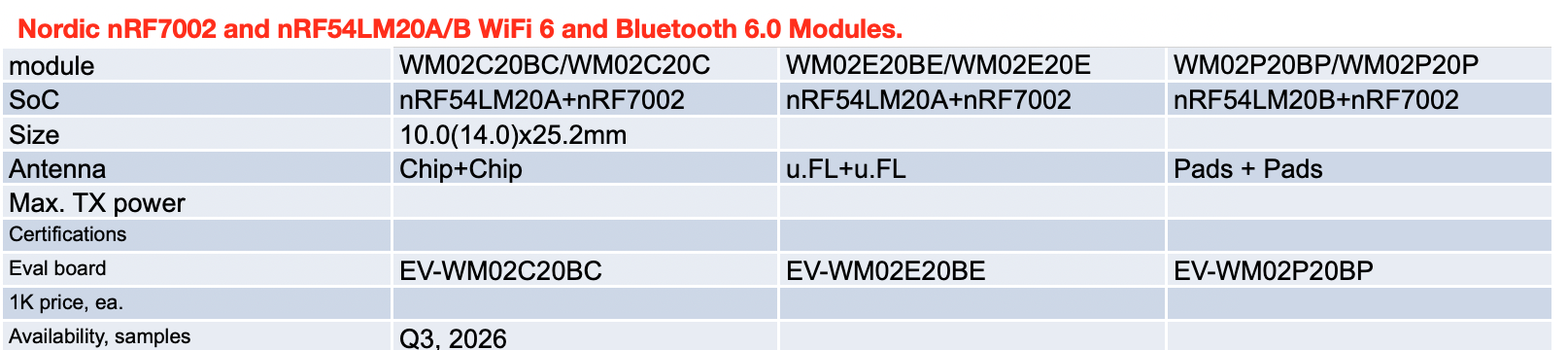

Module Summaries
WM02C20C

  • An nRF54LM20A BLE 6.0 and nRF7002 WiFi 6 combo module.

  • A chip antenna for WiFi interface

  • A chip antenna for Bluetooth interface.

  • Size 10.0 (14.0 antenna area) x25.2x2.0mm

WM02C20BC

  • An nRF54LM20B BLE 6.0 and nRF7002 WiFi 6 combo module.

  • An embedded Axon NPU for edge AI applications.

  • A chip antenna for WiFi interface

  • A chip antenna for Bluetooth interface.

  • Size 10.0 (14.0 antenna area) x25.2x2.0mmSize 10.0x15.0x2.0mm

WM02E20E

  • An nRF54LM20A BLE 6.0 and nRF7002 WiFi 6 combo module.

  • A u.FL connector for external WiFi antenna

  • A u.FL connector for external Bluetooth antenna

WM02E20BE

  • An nRF54LM20B BLE 6.0 and nRF7002 WiFi 6 combo module.

  • An embedded Axon NPU for edge AI applications.

  • A u.FL connector for external WiFi antenna

  • A u.FL connector for external Bluetooth antenna

Bluetooth Specifications

BLE 6.0, IEEE 802.15.4-2006 Transceiver

  • Complete RF solution with integrated antenna

  • BLE: 2Mbps, 1Mbps (-96 dBm sensitivity), 500kbps, 125kbps (-106 dBm sensitivity).

  • IEEE 802.15.4-2006: 250 kbps (-102 dBm sensitivity).

  • Proprietary: 4Mbps, 2Mbps, 1Mbps.

  • Programmable TX power, -8 dBm +8 dBm.

  • Channel sounding for Bluetooth range measurements.

  • 128 bit AES/ECB/CCM/AAR co-processor (on-the-fly operation).

  • 12.0 mW TX current at 0 dBm, 1Mbps, 1.8V VDD.

  • 7.5 mW RX current, 1Mbps, 1.8V VDD.

  • Both 32.0 MHz and 32.768 kHz crystals embedded.

  • RSSI, 1 dB resolution

Platform Security

  • Secure/non-secure memory protection.

  • Symmetric and asymmetric key crypto accelerator.

  • Secure key management.

  • Tamper detection.

  • Immutable boot partition.

  • Debug access port protection.

  • Two watchdog timers for secure and non-secure context.

MCU

  • Nordic nRF54L with ARM Cortex M33, 128 MHz.

  • Flash/RAM: 2036KB/512KB.

  • 505 EEMAC CoreMark score  running from non-volatile memory, 3.95 CoreMark per MHz.

  • Single precision floating point unit (FPU).

  • Memory protection unit (MPU).

  • Digital signal processing (DSP) instructions.

  • Data watchpoint and trace (DWT), embedded trace macrocell (ETM), instrumentation trace macrocell (ITM), and cross trigger interface (CTI).

  • Serial Wire Debug (SWD)

  • Trace port interface unit (TPIU), 4-bit parallel trace of ITM and ETM trace data; Serial wire output (SWO) trace of ITM data.

Peripherals

  • Two realtime counters (RTC), and one global RTC (GRTC) that can run in System OFF mode and implement a shared system timer.

  • Seven 32-bit timers with counter mode.

  • Five fully featured serial interfaces with EasyDMA, supporting I2C, SPI controller/peripheral, and UART.

  • Three pulse width modulator (PWM) units with Easy DMA.

  • I2S two channel inter-IC sound interface.

  • 14-bit at 20KS/s, 12 bit at 250KS/s, or 10-bit at 2MS/s ADC with up to eight programmable gain channels.

  • Near field communication (NFC).

  • Two quadrature decoders (QDEC).

  • 90 LGA pins, 66 GPIOs.

  • Embedded inductors for DCDC converter

  • 1.7V to 3.6V supply voltage with up to 3.6V I/O voltage.

  • Both 32 MHz and 32 KHz crystal embedded.

  • Operation temperature: -40°C to +105°C

Certifications

  • FCC ID:

  • ISED ID:

  • Europe:

  • Australia and New Zealand:

  • Japan TELEC:

  • Taiwan NCC:

  • QDID:

  • Availability: Samples Q4 2025
