WM02C, WM02E, WM02F Nordic nRF7002 WiFi 6 Modules
nRF7002 Companion WiFi 6 Module
Supports IEEE 802.11 a/b/g/n/ac/ax in the 2.4 GHz and 5 GHz bands.
Hosted by an nRF5340, nRF52840, nRF9160, or other MCU through an SPI interface.
Low-power and secure Wi-Fi for the IoT
Ideal coexistence with Bluetooth LE
Supported in nRF Connect SDK
Target Wake Time (TWT)
SPI / QSPI
Wi-Fi 6 Station (STA)
1 Spatial Stream (SS)
20 MHz channel bandwidth
64 QAM (MCS7), 86 Mbps PHY throughput
OFDMA (Downlink and Uplink)
BSS coloring
Co-existence interfaces
Operation Temperature: -40°C to +85°C
16 castellated pins.
Integrated shield to resist EMI
Availability: Samples.

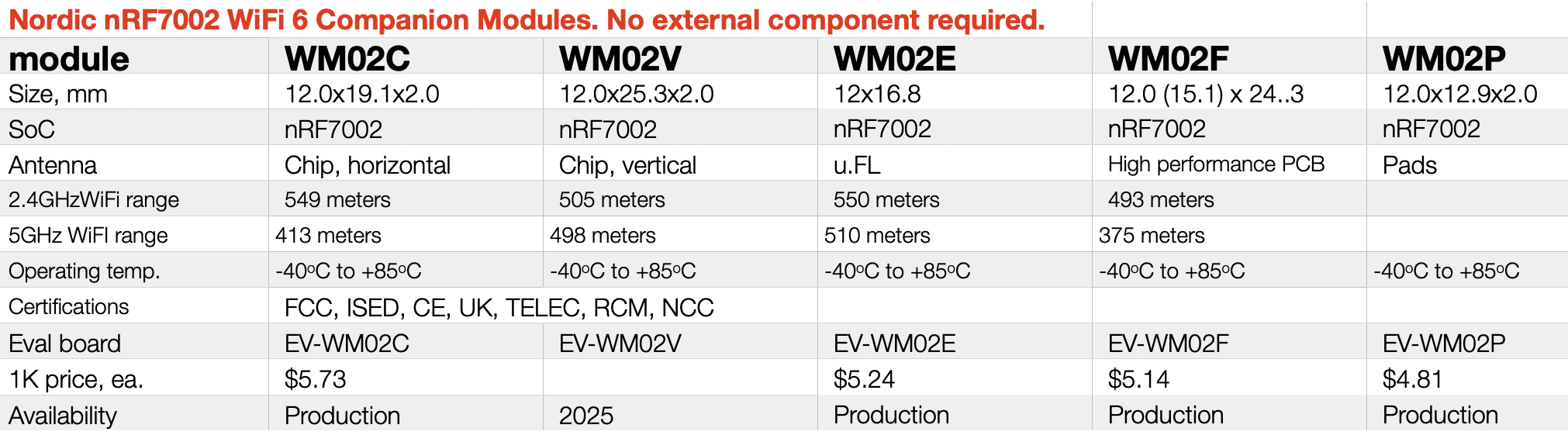

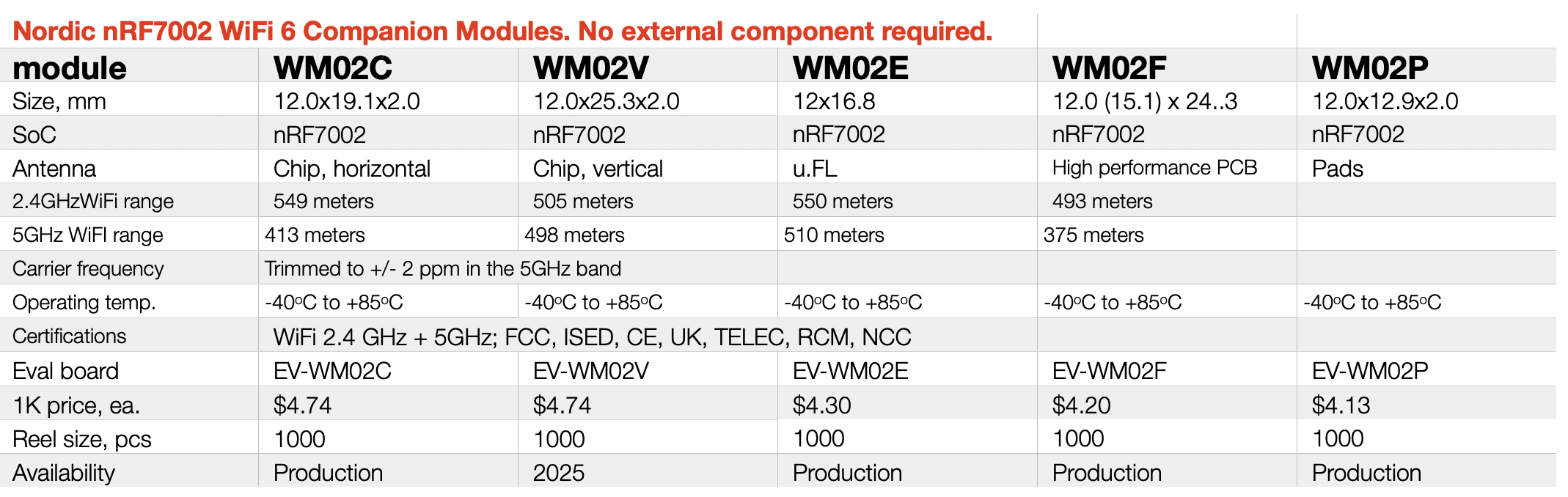

WiFi 6 Companion Module Summaries
WiFi ranges are the average of 12 measurements with an iPhone 14. WiFi module is rotated by 30 degrees after each measurement. SDK 2.5.0 default settings are used. WiFi ranges will be measured again after FCC certification.
WM02C
Uses an integrated horizontal chip antenna for both 5GHz and 2.4GHz
Size: 12x20.0 mm
WM02F
Uses a high performance PCB antenna for both 5GHz and 2.4GHz
Size: 12 (15.a antenna area) x23.8 mm
WM02E
An u.FL connectors for external antenna for both 2.4 GHz and 5 GHz.
Size: 12x16.2mm
WM02V
Uses an integrated vertical chip antenna for both 5GHz and 2.4GHz
Size: 12x25.2 mm
Host MCUs by Fanstel, certified or will be certified for BLE and 802.15.4, ready for Matter Applications.
nRF5340 modules: BT40, BT40F, BT40E; BT40N, BT40NE (with nRF21540 PA for long range 802.15.4 applications)
nRF52840 modules: BT840, BT840E, BT840F; BT840N, BT840NE (with nRF21540 PA for long range 802.15.4 applications)
For low cost applications, BM840 is suggested. BM840 is certified for BLE only.
