BM833, BM833F, BM833E, nRF52833 Long Range Bluetooth 5.2, Thread, Zigbee Module

BM833, BM833F and BM833E are Bluetooth Low Energy, BLE 5.2 modules using Nordic nRF52833 SoC with integrated high performance PCB trace antenna.

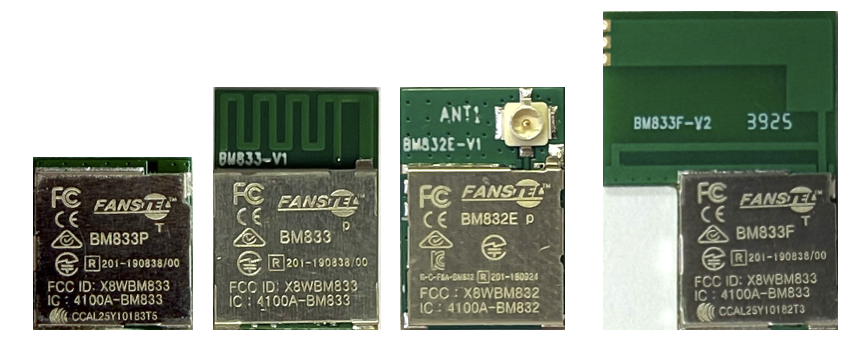

Differences between modules:

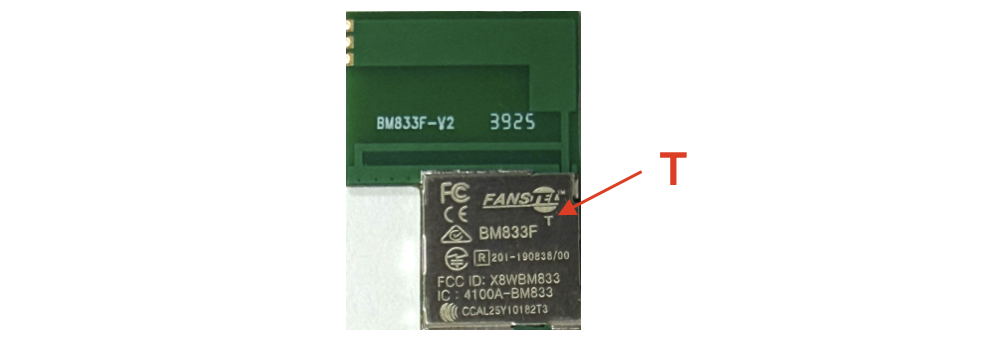

• Size of BM833 and BM833E is 10.2x15x1.9 mm; BM833F is 10.2 (15 antenna area) x 20.6x1.9mm

• Range between two BM833s is estimated at 1400 meters at 125 Kbps; between two BM833F is estimated at 2300 meters at 125 Kbps.

BM833A and BM833AF are nRF52811 modules.

BM833 Series are footprint compatible with BM832 Series nRF52832 modules. Four main differences:

1. Supports BLE 5.1 Direction Finding.

2. Supports BLE 5 CODY PHY at 500 Kbps and 125 Kbps for longer range

3. Supports Thread and Zigbee radio protocols.

4. Operating Temperature: -40°C to +105°C

Specifications

• Nordic nRF52833 QFAA with ARM Cortex M4F

• 512 KB flash, 256 KB RAM

• Complete RF solution with integrated antenna

• Bluetooth range, estimated: up to 2300 meters at 125 Kbps with at least 60% Fresnel zone clearance.

• 128-bit AES HW encryption

• Serial Wire Debug (SWD)

• Nordic SoftDevice Ready

• Over-The-Air (OTA) firmware update

Up to 32 GPIOs, firmware configurable and Peripherals

• 12 bit/200KSps ADC, 8 configurable channels with programmable gain

• 64 level comparator

• 15 level low power comparator with wake-up from system OFF mode

• Temperature sensor

• 3x 4-channel pulse width modulator (PWM) units with EasyDMA

• Digital microphone interface (PDM)

• 5x 32 bit timers with counter mode

• Up to 3x SPI Master/Slave with Easy DMA

• Up to 2x I2C compatible 2-wire master/slave

• I2S with EasyDMA

• UART (CTS/RTS) with EasyDMA

• Programmable peripheral interconnect (PPI)

• Quadrature Demodulator (QDEC)

• AES HW encryption with EasyDMA

• Autonomous peripheral operation without CPU intervention using PPI and Easy DMA

• 3x real time counter (RTC)

Power:

• Operation voltage: 1.7V to 5.5V

• Peak current: 4.6 mA RX, 4.8 mA TX at 0 dBm.

• 0.4 uA OFF mode, 1.5uA idle

RF Performance

• RX sensitivity: -103 dBm at 125 bps

• TX power: -20 to +8 dBm in 4 dB steps

Miscellaneous

• Operating Temperature: -40°C to +105°C

• Integrated shield to resist EMI

• Evaluation board: EV-BM833, EV-BM833F, EV-BM833E

• Availability: Production

Download product specifications, library components, certificates and test reports.

Certifications:

• FCC ID: X8WBM833F; BM833 with SAR evaluation report.

• IC (Industrial Canada) ID: 4100A-BM833F

• Europe: CE compliant

• Japan: TELEC 201-190838/00

• Australia: RCM compliant

• QDID: 138767

Evaluation Board EV-BM833, BM833F, BM833E

EV-BM833 board consists of an USB to UART bridge board and a main board. The main board operating temperature is -40C to + 105C. The bridge board is for programming module only.

Order Products

Please contact Fanstel for volume discount and production lead time.
