BM832, nRF52832 Bluetooth 5.2 Module

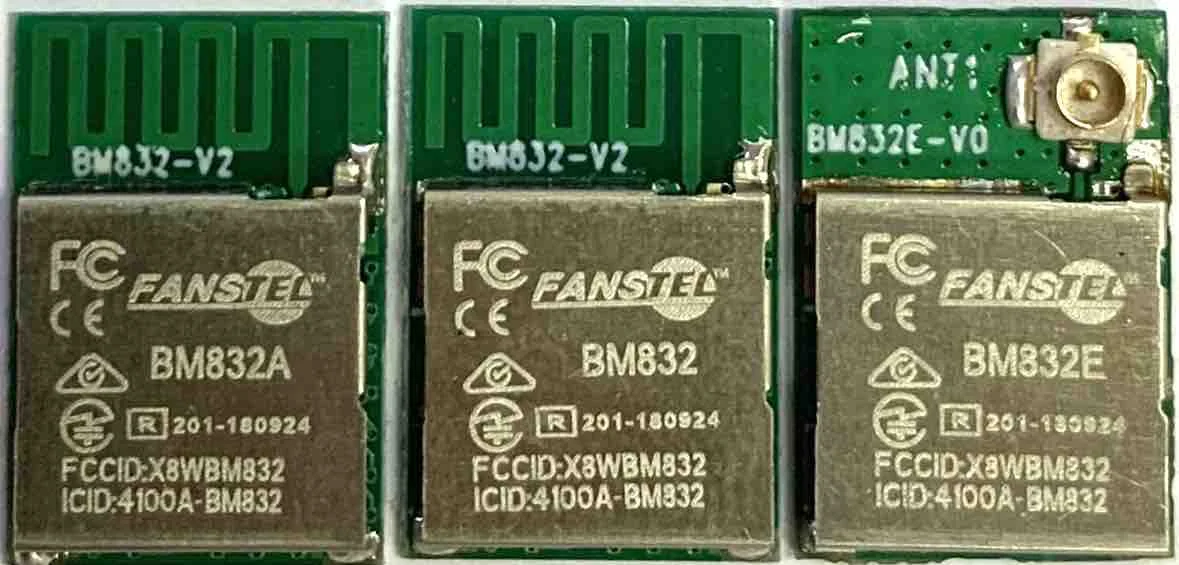

BM832A, BM832, BM832E



Full Feature BLE 5.2 module at the lowest cost

By using 2-sided PCB, BM832 has minimum BOM cost and is made in production line dedicated for Bluetooth modules with high production and quality control efficiency, the cost of using BM832 module can be lower than designing-in SoC at any quantity.

However, it is a full feature module. All 32 GPIOs of nRF52832 can be accessed. Inductors required for DCDC converted are integrated. A high performance PCB trace antenna is integrated.

BM832E is a sister module of BM832 with an u.FL connector for an external antenna.

  • Nordic nRF52832 QFAA with Cortex M4F at 64MHz

  • 512KB flash/64KBRAM

  • Bluetooth Range: 340 meters with at least 60% Fresnel zone clearance.

  • Complete RF solution with integrated antenna

  • NFC-A tag interface for Out Of Band pairing

  • 128-bit AES HW encryption

  • Serial Wire Debug (SWD)

  • Nordic SoftDevice Ready

  • Over-The-Air (OTA) firmware update

32 GPIOs, firmware configurable and Peripherals

  • 12 bit/200KSps ADC, 8 configurable channels with programmable gain

  • Type 2 near field communication (NFC-A) tag

  • 64 level comparator

  • 15 level low power comparator with wake-up from system OFF mode

  • Temperature sensor

  • 3x 4-channel pulse width modulator (PWM) units with EasyDMA

  • Digital microphone interface (PDM)

  • 5x 32 bit timers with counter mode

  • Up to 3x SPI Master/Slave with Easy DMA

  • Up to 2x I2C compatible 2-wire master/slave

  • I2S with EasyDMA

  • UART (CTS/RTS) with EasyDMA

  • Programmable peripheral interconnect (PPI)

  • Quadrature Demodulator (QDEC)

  • AES HW encryption with EasyDMA

  • Autonomous peripheral operation without CPU intervention using PPI and Easy DMA

  • 3x real time counter (RTC)

Power:

  • Operation voltage: 1.7V to 3.6V

  • Peak current: 5.4 mA RX, 7.5 mA TX at +4 dBm.

  • 0.4 uA OFF mode, 1.8 uA idle

Miscellaneous

  • Operation Temperature: -40°C to +85°C

  • Sizes: 10.2x15x1.9mm

  • Integrated shield to resist EMI

  • Availability: production. Approtect version BM832and BM832E are in production. For more information and ordering free approtect module samples.

Certifications:

  • FCC ID: X8WBM832, SAR reports added.

  • IC (Industrial Canada) ID: 4100A-BM832

  • Europe: Certified

  • Japan TELEC: 201-180924

  • Australia: Certified

  • Korea: R-C-F8A-BM832

  • QDID: 97989.

Datasheets, certificates, evaluation board schematics are available for download.

Evaluation Board EV BM832

EV BM832 is preloaded with BlueNor nRF5x application and SoftDevice S132 V5.0.0 Bluetooth 5 stacks. It can be used with Android app BlueNor nrf5x available at Google Play Store. You can send commands from an Android phone to toggle LED light on evaluation board. You can also send button pressing signal from evaluation board to Android device.

SDK and Android app source codes are available for download in the Bluetooth 5 Codes section of Download BlueNor Document. Other application codes can be downloaded from the same webpage.

To load other codes or to develop your own, a Nordic nRF52 DK is required but not included.

EV BT832 Bluetooth 5.jpg

Order Products

For volume discount and production lead time, please email Fanstel

BM832-p, Mini nRF52832 BLE 5.3 module supporting approtect
from $4.71

BM832, BLE 5.3 module with an nRF52832 QFAA or newer SoC, supporting approtect.

10-pack price, $4.51each;

100-pack price at $4.32 each

1K pcs-reel price, $3.92 each

size:
Quantity:
Add To Cart
BM832E-p, Mini nRF52832 BLE 5.3 module with an U.FL, supports approtect
from $4.90

BM832E-p, BLE 5.3 module with the same soldering pad footprint as BM832. An u.FL connector is on module.

BM832E-p uses an nRF52832 QFAA G or newer SoC, supporting approtect.

10-pack price, $4.69 each;

100-pack price at $4.49 each

1K pcs-reel price, $4.08 each

size:
Quantity:
Add To Cart
BM832, Mini nRF52832 BLE 5.2 module
from $4.71

BM832, BLE 5.2 module with the same soldering pad footprint as BM832A.

10-pack price, $4.51each;

100-pack price at $4.32 each

1K pcs-reel price, $3.92 each

size:
Quantity:
Add To Cart
BM832E, Mini nRF52832 BLE 5.2 module with an U.FL
from $4.90

BM832E, BLE 5.2 module with the same soldering pad footprint as BM832. An u.FL connector is on module.

10-pack price, $4.69 each;

100-pack price at $4.49 each

1K pcs-reel price, $4.08 each

size:
Quantity:
Add To Cart
EV-BM832-p, Evaluation board for BM832-p, Bluetooth 5.3 module
$60.00

Evaluation board for BM832-p, supporting approtect

Quantity:
Add To Cart
EV-BM832E-p, Evaluation board for BM832E-p, Bluetooth 5.3 module with an u.FL
$60.00

Evaluation board for BM832E-p, supporting approtect.

Quantity:
Add To Cart
EV-BM832, Evaluation board for BM832, Bluetooth 5 module
Sale Price:$30.00 Original Price:$60.00

Evaluation board for BM832

Quantity:
Add To Cart
EV-BM832E, Evaluation board for BM832E, Bluetooth 5 module with an u.FL
Sale Price:$30.00 Original Price:$60.00

Evaluation board for BM832E

Quantity:
Add To Cart
