BH661 module is a Bluetooth 4.2 dual mode module to support secure connection or with audio (Wide Band Speech) profiles . Certified BLE 4.2 stacks (with Toshiba QDID) are embedded.

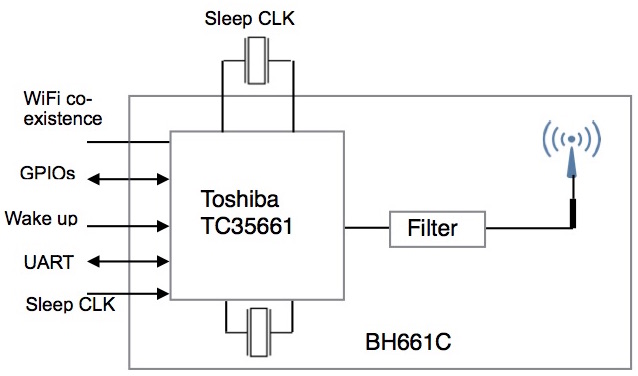

Block Diagram

BH661 Block DIagram

BH661 Block DIagram

Features

  • A hosted module with Toshiba TC35661 SoC, -503, -551, or -009 ROM codes
  • Bluetooth SIG certified BT4.2 stacks embedded in mask-ROM.
  • Bluetooth RF analog core, baseband digital core and integrated antenna
  • Transmitter power 4 dBm; Receiver sensitivity: -90 dBm.
  • BH661C-503: Bluetooth  V4.2, SPP + GATT profiles
  • BH661C-551: Bluetooth V4.2, secure SPP + GATT profiles
  • BH661C-009: Bluetooth V4.2, WBS (Wide Band Speech) profiles
  • On board 26 MHz main clock
  • External 32.768 kHz sleep clock
  • Operation voltage: 2.0V-3.6V
  • Peak current consumption, 6 mA; deep sleep mode <0.1uA
  • Integrated antenna,
  • Bluetooth line of sight range with a smartphone, 50 meters (150 feet).
  • Operation Temperature: -40oC to +85oC
  • Dimension: 16.7x11x1.9mm
  • Castellated pins: 24 pins. Easier prototyping, easier production.
  • Integrated shield to resist EMI
  • Bluetooth SIG QDID: 66367 (Toshiba)

Applications:

  • Wearable
  • Access Points
  • Industrial Control
  • Medical
  • Scanners
  • iOS and Android devices
  • Wireless sensors
  • Cable replacement
  • Instrumentation
  • Automobile

Certifications:

FCC ID: X8WBH661

Industrial Canada: 4100A-BH661

DownLoad Document

Order Products

Unit price is $4.99 each in reel quantity or 1000 pcs, FOB, origin.

Sample price is $6.23 each in 10-pack.

Contact your local sale representatives for lead time and quotation for other quantities.
