BT832X, BT832XE, The Longest Range Bluetooth  5 Module



BT832X

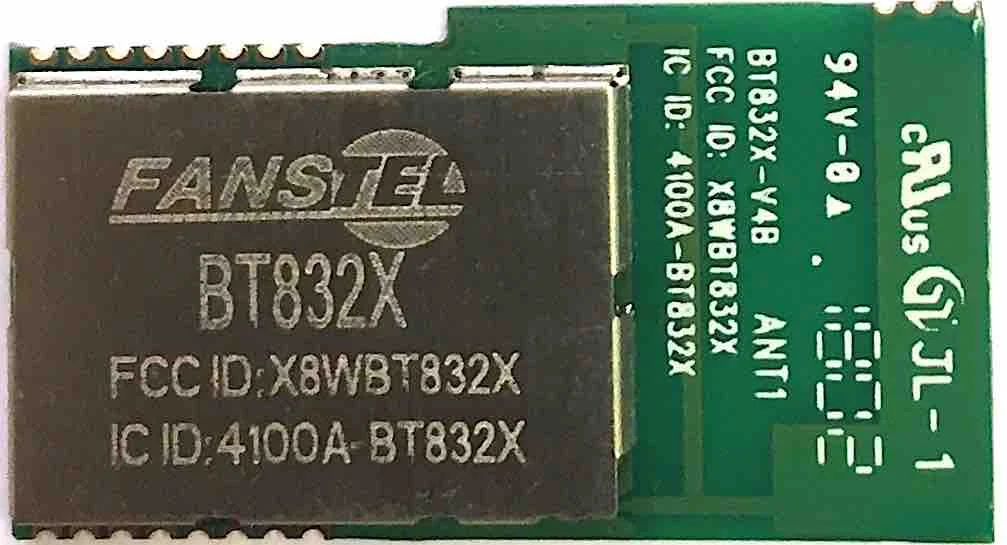

BT832X, Bluetooth 5 Module with Power Amplifier

BT832X is a Nordic nRF52832 module with Skyworks SKY66112 power amplifier. With over 120 dB link budget, range is 1300 meters when antenna on BT832Xs is facing each other. When one antenna is rotated 30 degrees after each measurement, average range for 12 measurements is 1170 meters.

BT832XE, Bluetooth 5 Module with Power Amplifier and an u.FL Connector

BT832XE is a Bluetooth 5 module with nRF52832, SKY66112 power amplifier, and an u.FL connector for an external antenna. Bluetooth range with an +6 dBi external antenna is 1350 meters for all angles when one antenna is rotated by 30 degrees after each measurement.

The external antenna is omni directional.

EV-BT832XE with an u.FL to SMA adaptor cable, and an antenna

EV-BT832XE with an u.FL to SMA adaptor cable, and an antenna

Procedures for Measuring Bluetooth Ranges

Evaluation board EV-BT832X/BT832XE is loaded with Master or  Slave firmware for range measurement. A Slave board can be connected to a smartphone and up to 4 Master boards. A smartphone is not required for measuring range between 2 Bluetooth modules.

Using Evaluation board with Master and Slave Firmware to measure Bluetooth range

Using Evaluation board with Master and Slave Firmware to measure Bluetooth range

A Slave board and a Master board are required for range measurement.

  1. Powering up both Master and Slave boards. Portable smartphone charger is recommended.
  2. LED 2 is ON to indicate connection between Master and Slave.
  3. Each board sends a command every second.
  4. LED 4 toggles ON/OFF when a valid Bluetooth command is received. A consistent toggling of LED light is an indication for almost error free data reception. When signal is weak or interference is high, some toggling is missed.
  5. Measure the range that LED 4 stops toggling for a few seconds.
  6. Rotate one board by 30 degrees and take 12 total measurements.

Testing Conditions

We test ranges of BT832X and BT832XE in a farmland east of Scottsdale, Arizona USA. Testing conditions:

  1. One evaluation board on a long wood stick supporting by a ladder. Antenna is 7 feet or 2.1 meters above ground.
  2. A tester holds the short wood stick with the second evaluation board. Antenna is about 2.1 meters above ground during testing. The second evaluation board is rotated by 30 degree after each measurement.
  3. Wireless interference is relatively low in this area.
  4. A car or a truck can blow dust up and block Bluetooth signal.
  5. "Track Exercise" feature of Fitbit app on an iPhone 6 Plus is used to measure distance. Resolution is 10 meters. Human steps are used to measure distance with resolution to 1 meter in some cases.

Testing Results

We measure Bluetooth ranges with the following evaluation boards.

  1. 6 Master-Slave pairs of EV-BT832X boards
  2. 1 Master EV-BT832XE with a +6dBi external antenna and 2 Slave EV-BT832XE with a +6dBi external antenna.
  3. 1 Master EV-BT832XE with a +6 dBi external antenna and 3 Slave EV-BT832X.

The followings results are average of these measurements. In summaries:

  1. The external antenna is omni-directional. Range is 1350 meters for all angles between 2 BT832XEs with external antenna.
  2. Range between a BT832XE with an external antenna and a BT832X is almost omni directional. Range is more than 1345 meters for all angles.
  3. BT832X antenna is not omni directional. Range between 2 BT832X is from 1067 meters to 1322 meters. Or, range is  1174 meters on the average.
Bluetooth Line of Sight Range between BT832X and BT832XE.

Bluetooth Line of Sight Range between BT832X and BT832XE.

BT832X is usually installed inside a enclosure. Interference from other wireless sources, walls, and other physical objects will also reduce Bluetooth range. Bluetooth range in end user environment will be shorter.

Additional Testing Notes

  1. The antenna on the fixed wood stick is always 2.1 meters above ground. If the second antenna is lifted to about 3 meters, Bluetooth range is longer.
  2. We tested BT832XE with +9dBi and +12 dBi external antennal. The range is just a few meters longer. Multiple-path interference can be the dominating limiting factor.
  3. If our speculation is true, Bluetooth range can be much longer if at least one antenna is high above ground. An example is drone application.

BT832X, the longest Range Bluetooth 5 module

  • nRF52832 QFAA with Cortex M4F at 64MHz
  • 512KB flash/64KBRAM
  • NFC-A tag interface
  • Bluetooth Line of Sight range: 1250 meters
  • Sizes: 15.0x28.0x1.9mm
  • Peak current 95 mA at +20 dBm TX.
  • Certification: pending
  • Availability: sample
  • Unit price: $9.98 each at 1K pcs

BT832XE with PA and a connector for external antenna

  • nRF52832 QFAA with Cortex M4F at 64MHz
  • 512KB flash/64KBRAM
  • NFC-A tag interface
  • Sizes: 15.0x28.0x1.9mm
  • Availability: sample

Specifications

  • Nordic nRF52832 QFAA with ARM Cortex M4F (M4 for nRF52810 module)
  • 512 KB flash, 64 KB RAM (192KB flash/64 KBRAM for nRF52810 module)
  • Complete RF solution with integrated antenna
  • NFC-A tag interface for Out Of Band pairing (not for nRF52810 module)
  • 128-bit AES HW encryption
  • Serial Wire Debug (SWD)
  • Nordic SoftDevice Ready
  • Over-The-Air (OTA) firmware update

32 GPIOs, firmware configurable and Peripherals

  • 12 bit/200KSps ADC, 8 configurable channels with programmable gain
  • Type 2 near field communication (NFC-A) tag
  • 64 leve comparator
  • 15 level low power comparator with wake-up from system OFF mode
  • Temperature sensor
  • 3x 4-channel pulse width modulator (PWM) units with EasyDMA
  • Digital microphone interface (PDM)
  • 5x 32 bit timers with counter mode
  • Up to 3x SPI Master/Slave with Easy DMA
  • Up to 2x I2C compatible 2-wire master/slave
  • I2S with EasyDMA
  • UART (CTS/RTS) with EasyDMA
  • Programmable peripheral interconnect (PPI)
  • Quadrature Demodulator (QDEC)
  • AES HW encryption with EasyDMA
  • Autonomous peripheral operation without CPU intervention using PPI and Easy DMA
  • 3x real time counter (RTC)

Power:

  • Operation voltage: 1.7V to 3.6V
  • 0.4 uA OFF mode, 1.8 uA idle

Miscellaneous

  • Operation Temperature: -40°C to +85°C
  • Integrated shield to resist EMI

Certifications:

  • FCC ID:
  • IC (Industrial Canada) ID:
  • Europe:

Datasheets, certificates, evaluation board schematics are available for download.

Evaluation Boards

Evaluation board is pre-loaded with BlueNor Mesh testing firmware. User manual can be downloaded from the section below.

Evaluation board with firmware supporting AT commands is available by special order. Please email Fanstel.

Order Products

For volume discount and production lead time, please email Fanstel

BT832X, The longest range Bluetooth 5 module
from 14.96

BT832X is the longest range Bluetooth 5 module, 1170 meters between 2 BT832X

$12.47 each at 10-pack

$9.98 each at 1K pcs

size:
Quantity:
Add To Cart
EV-BT832X, Evaluation board for BT832X, the longest range Bluetooth 5 module
120.00

BT832X evaluation boards. 2-pack, one with Master firmware and one with Slave firmware for Bluetooth range measurement.

EV BT832X V3 has the same footprint as that of Arduino UNO R3. It is not a compatible board. Nordic development environment can be used to develop codes for many UNO R3 shields.

AT command firmware is available from Fanstel.

Quantity:
Add To Cart
BT832XE, The longest range Bluetooth 5 module with u.FL connector
from 14.96

BT832XE is the longest range Bluetooth 5 module, 1350 meters between 2 BT832X

$12.47 each at 10-pack

$9.98 each at 1K pcs

size:
Quantity:
Add To Cart
ANT060 6 dBi antenna and SMA100 u.FL to SMA adapter cable
10.00

ANT060: 6 dBi antenna with SMA connector.

SMA100: SMA to u.FL adapter cable, 100 mm (4 inches) long. SMA connector with panel-mount hardware.

To be used with BT832XE, BT600I, or BT840E.

Shipment ETA, July 15th, 2017



Add To Cart
EV-BT832XE, Evaluation board for BT832X, the longest range Bluetooth 5 module
140.00

BT832XE evaluation boards. 2-pack, one with Master firmware and one with Slave firmware for Bluetooth range measurement.

Includes 2 ANT060 antenna with u.FL to SMA adapter cable

EV BT832X V3 has the same footprint as that of Arduino UNO R3. It is not a compatible board. Nordic development environment can be used to develop codes for many UNO R3 shields.

AT command firmware is available from Fanstel.
