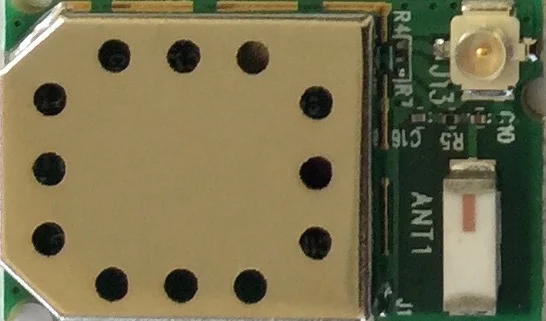

BT600E Bluetooth Module with External Antenna




BT600E is a Bluetooth Low Energy (BLE) module using Nordic SoC. An u.FL connector is on board for connection to an external antenna.

To download document.

Processor: Nordic nRF51822 QFAB, v3.1

  • Bluetooth Low Energy (BLE)
  • Cortex M0 processor
  • 128 KB flash, 16KB RAM
  • AES HW encryption
  • Host mode: connects to a host via UART, uses AT Commands
  • Standalone mode: download firmware to flash memory

Peripherals

  • 31 GPIO pins, firmware configurable
  • UART, I2C, SPI, PWM, ADC
  • Temperature sensor
  • Low power comparator
  • Timer and counter

Power:

  • Operation voltage: 1.8V-3.6V
  • Peak current: 13 mA RX, 10.5 mA TX.
  • 0.6 uA OFF mode, 2.6 uA idle

RF Performance

  • RX sensitivity: -93 dBm
  • TX power: -20 to +4 dBm in 4 dB steps
  • Line of Sight Range: 50m (150 feet)

Miscellaneous

  • Sizes: 20X12X3mm, 44 pins
  • Operation: -25°C to +75°C
  • Storage: -40°C to +85°C
  • Integrated shield to resist EMI
  • Evaluation board: EV-BT600E
  • FCC ID: X8WBT600E
